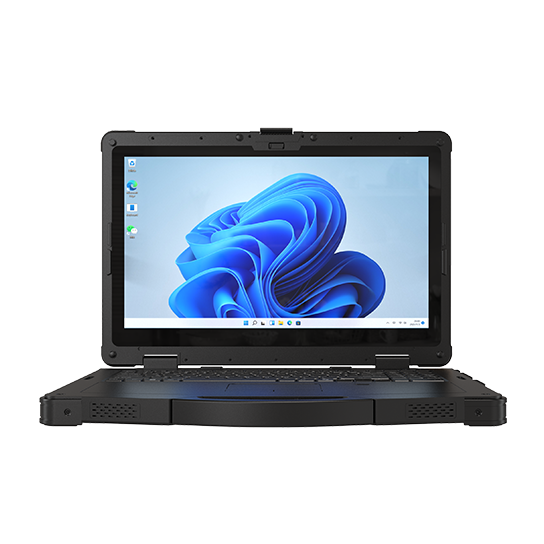

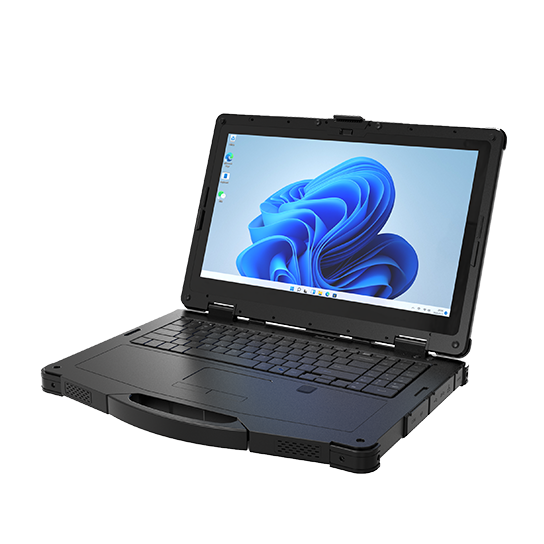

EM-X15M 15.6 Inch Rugged AI PC Intel Windows+AI
TF:
006138-HW-EMDOOR-038
| Basic parameters | |
| Dimensions | 407*305.8*45.5mm |
| Machine weight | 3.53kg |
| Machine color | Black |
| Display | 15.6 inch 16:9, 1920×1080, 1000 nits |
| Touch screen | Optional 10-point capacitive screen,Hardness above 7H, Scratch-resistant，supports glove touch |
| Camera | Front 5.0MP |
| I/O Interface | USB3.2 *1, USB3.0 *1，USB2.0 *1 TYPE-C, Supports Thunderbolt 4 ∮3.5mm Standard Earphone Jack *1 HDMI 2.0a mini *1 SIM card *1，TF card *1 RJ45*1 10M/100M/1000M self-adaptive， RJ45*1 10M/100M/1000Mself-adaptive(USB2.0), supports Gigabit Ethernet protocol RS232 *1, 9 fully functional lines DC19V/3.78A ∮5.5mm power interface *1 Anti-theft Lock Slot *1 Right-side Cooling Vent *1 Left-side expansion slot, optional M.2-2280 PCIe interface *1, supports SSD; Optional: M.2 E-KEY interface *1 for custom modules Optional: 12PIN Pogo Pin (USB & Charging) *1 |
| Power adapter | AC100~240V, 19V/3.78A 71.82W output US Standard |
| Wireless Communications | |
| WIFI | Wi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax |
| Bluetooth | BT5.1(BLE) class 1 Transmission distance: 10m |
| 2G/3G/4G/5G | 2G/3G/4G(Optional)/5G(Optional) |
| GNSS | Supports single GPS or single Glonass, default GPS |
| Performance parameters | |
| CPU | Intel® Core™ Ultra 7 processor 155H |
| GPU | iGfx/dGfx (Intel Xe LPG Graphics) |
| Operating system | Windows 11 Pro |
| Memory | 32GB |
| Storage capacity | 256GB |
| Battery Performance | |
| Battery | Built-in - 1300mah/11.1V / Built-in Polymer Lithium-ion Battery, Non-removable / 1.5 hours Hot-swappable - 4850mah/11.55V / Removable Polymer Lithium-ion Battery, Hot-swappable / 8 hours |
| Data collection | |
| NFC | Optional |
| 1D | NO |
| 2D | NO |
| Fingerprint | Yes |
| Product reliability | |
| Operating temperature | -20℃~60℃ |
| Storage temperature | -30℃~70℃ |
| Humidity | 95%, no condensation |
| Protection level | IP65 certified, MIL-STD-810H certified |
| Drop height | 1.22m drop resistance |
15.6 Inch AI Rugged PC X15M: Intel Core Ultra & Arc Graphics with NPU. Windows 11 OS, dual memory/storage. MIL-STD-810H certified for industrial AI computing.
