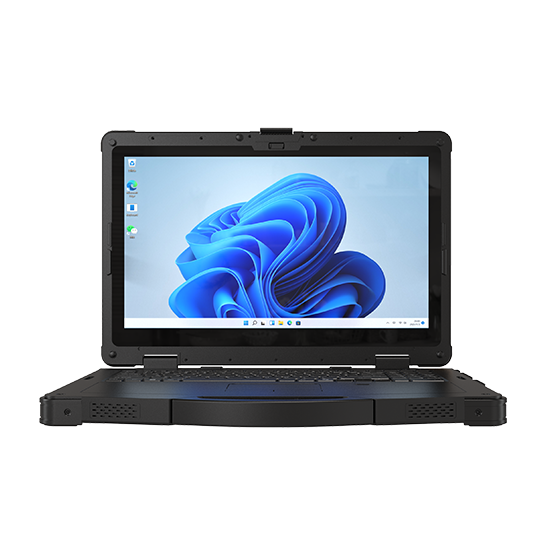

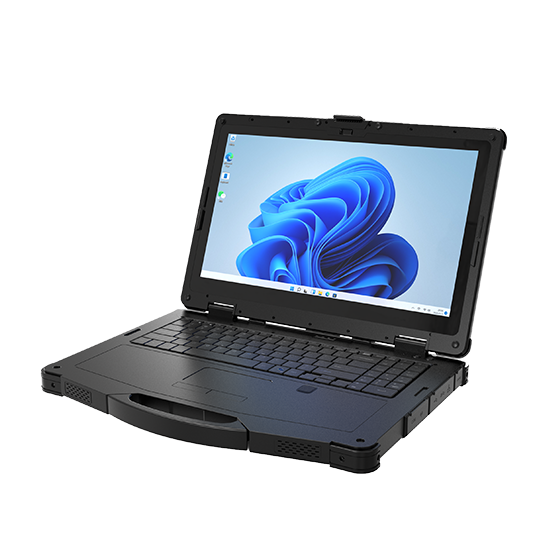

EM-X14A 14 Inch Rugged Notebook Intel Core i5/i7 Windows11
TF:
006141-HW-EMDOOR-041
| Basic parameters | |
| Dimensions | 363.2*287.4*42.1mm |
| Machine weight | 2.97kg |
| Machine color | Black |
| Display | 14 inch FHD 16:9, 1920x1080, 1000 2.97kg nits |
| Touch screen | Optional 10 point G+G capacitive touch screen Corning® Gorilla® |
| Camera | Front 5.0MP |
| I/O Interface | USB3.2 *1, USB3.0 *1, USB2.0 *1, TYPE-C, Support Thunderbolt 4 HDMI 2.0a mini *1, SIM *1, TF *1, DB9 (RS232) *1、RJ45 *2, ∮3.5mm Standard Earphone Jack *1, DC19V/3.78A Power port *1 Anti-theft Lock Slot *1, Right-side Cooling Vent *1, Left-side expansion slot, optional M.2-2280 PCIe interface *1, supports SSD; Optional: M.2, E-KEY, PCIE interface *1 for custom modules. Optional: 12PIN Pogo Pin (USB & charging) *1 |
| Power adapter | AC100V ~ 240V, Output DC 19V/3.78A 71.82W |
| Wireless Communications | |
| WIFI | WiFi 6，802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax |
| Bluetooth | BT5.1 Transmission distance: 10m |
| 2G/3G/4G/5G | 2G/3G/4G(Optional)/5G(Optional) |
| GNSS | Supports single GPS or single glonass, default GPS |
| Performance parameters | |
| CPU | Intel i5-1235U |
| GPU | Intel® Iris® Xe Graphics eligible |
| Operating system | Windows 11 Pro |
| Memory | 16GB |
| Storage capacity | 256GB |
| Battery Performance | |
| Battery | Built-in - 11.1V/1300mAh / Built-in Polymer Lithium-ion Battery, Non-removable / 1.5 hours Hot-swappable - 11.55V/4850mAh / Removable Polymer Lithium-ion Battery, Hot-swappable / 7.5 hours |
| Data collection | |
| NFC | Optional |
| 1D | NO |
| 2D | NO |
| Fingerprint | Yes |
| Product reliability | |
| Operating temperature | -20℃~60℃ |
| Storage temperature | -30℃~70℃ |
| Humidity | 95%, no condensation |
| Protection level | IP65 certified, MIL-STD-810H certified |
| Drop height | 1.22m drop resistance |
14 inch Windows 11/10 Rugged Laptop X14A: 12th Gen Intel Core i5/i7 with Iris Xe Graphics. MIL-STD-810H & IP65 certified. Hot-swappable 4850mAh+1300mAh batteries. Built for railway inspection.
