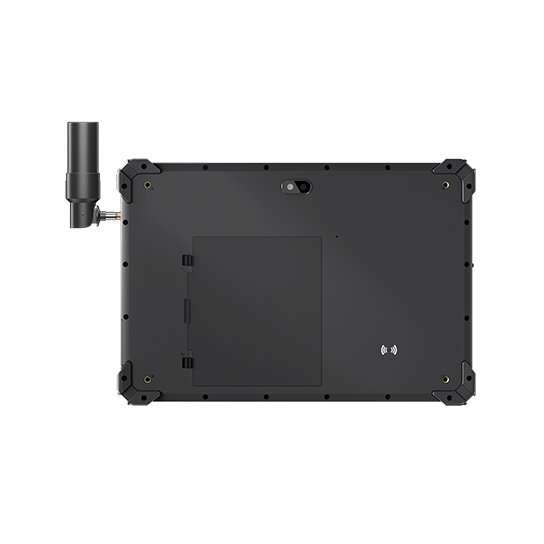

EM-T17X (RTK) 10.1 Inch High-Accuracy GNSS Android Rugged Tablet PC
-
NG # 006108-HW-EMDOOR-008
Manufactured by:
Specification
Basic
parameters Dimensions 274.9*188.7*23.1mm (GNSS antenna: Diameter 27.5mm, length 113mm) Machine weight TBD Machine color Black Display 10.1 inch TFT 16:10, 1920×1200, 700nits Touch screen 10 point capacitive touch screen Camera Front 5.0MP + rear 13.0MP I/O Interface USB 2.0 Type-A x 1,
USB Type-C x 1,
SIM Card x 2, TF Card (Three in one card
holder), 12PIN Pogo Pin x 1,
Φ3.5mm standard earphone jack x 1Power adapter USB Type-C interface, supports fast charging PE+2.0,
maximum power of 18W, maximum 9V/2AWireless
Communications WIFI 802.11 a/b/g/n/ac (2.4G+5.8G) Bluetooth BT5.2 Transmission distance: 10m 2G/3G/4G/5G 4G GNSS BDS: B1I、B2I、B3I，GPS: L1C/A、L2P(W)、L5
GLONASS: L1、L2，Galileo: E1、E5b、E5a
QZSS: L1、L2、L5 ，Single-point positioning：2.5m
RTK：
Horizontal：0.8 cm + 1 ppm Vertical：1.5 cm + 1 ppmPerformance
parameters CPU MT6789 octa-core GPU ARM G57 MC2 Operating system Android 12 / GMS Memory 8GB Storage capacity 128GB Battery
Performance Battery 10000mAh/3.8V / Removable Lithium-ion polymer battery / 7 hours Data
collection NFC YES 1D NO 2D Optional Fingerprint NO Product
reliability Operating temperature -20℃~60℃ Storage temperature -30℃~70℃ Humidity 95%, no condensation Protection level IP65 certified, MIL-STD-810H certified Drop height 1.22m drop resistance
Description
The rugged tablet PC T17X (RTK) is a 10.1 inch high - accuracy GNSS Android device. Powered by the MT6789 processor and running on Android 12/GMS, it's solid, practical, professional, and efficient.
