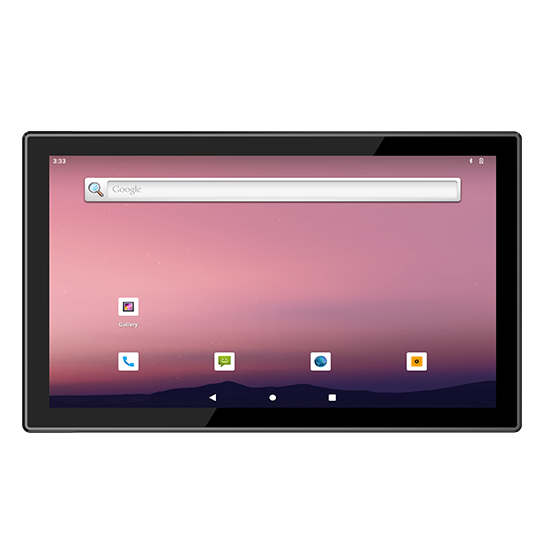

EM-P21R Rockchip RK3568 21.5 Inch Android Embedded Industrial Panel PC
TF:
006122-HW-EMDOOR-022
| Basic parameters | |
| Dimensions | 537.02 x 324.02 x 57.60 mm |
| Machine weight | 5.05 kg |
| Machine color | Black |
| Display | Black（Front and Rear Panel: Black，Decorate Board:Black） |
| Touch screen | 10 PCAP |
| Camera | / |

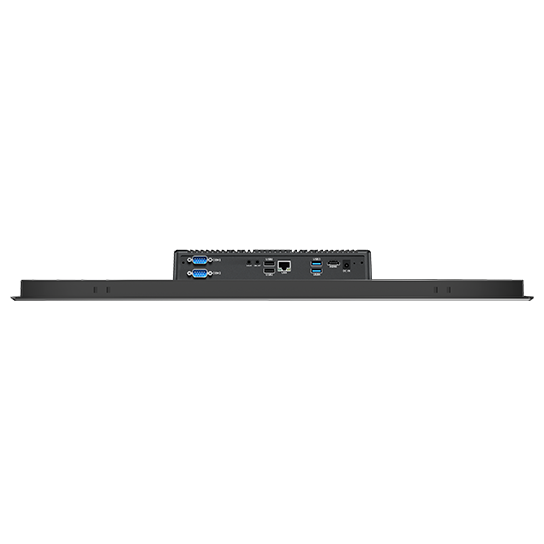

| I/O Interface | Standard USB-A USB3.0*1,USB3.0*1 OTG,USB 2.0*2 Power interface DC IN 12V-24V Power connector *1 Standard Earphone Jack *1 RJ45 *1 (10M/100M/1000M adaptive) DB9 PORT RS232*2 (Mainboard switchable to RS485: RS485*1,RS232*1) HDMI *1 |
| Power adapter | AC100V ~ 240V、50Hz/60Hz output DC 12V/4A |
| Wireless Communications | |
| WIFI | 802.11a/b/g/n/ac |
| Bluetooth | BT5.0 |
| 2G/3G/4G/5G | 2G/3G/4G |
| GNSS | / |
| Performance parameters | |
| CPU | RK3568 |
| GPU | Mali-G52-2EE |
| Operating system | Android 12 |
| Memory | 4GB |
| Storage capacity | 64GB |
| Battery Performance | |
| Battery | / |
| Data collection | |
| NFC | No |
| 1D | NO |
| 2D | NO |
| Fingerprint | NO |
| Product reliability | |
| Operating temperature | -20℃~60℃ |
| Storage temperature | -30℃~70℃ |
| Humidity | 95%, no condensation |
| Protection level | IP65 Front Panel |
| Drop height | 1.22m drop resistance |
Emdoor's the P21R is easy to install by the methods of embedded, wall-mounted and others, which can be in any position and widely used in industrial control, communication, power, network, and other automation fields.
