EM-P21J Intel Celeron N5100 21.5 inch Windows Industrial PC
TF:
006123-HW-EMDOOR-023
| Basic parameters | |
| Dimensions | 537.02 x 324.02 x 57.60 mm |
| Machine weight | 5.05 kg |
| Machine color | Black |
| Display | 21.5 inch LCD 16:9, resolution 1920*1080 , 250nits |
| Touch screen | 10 PCAP |
| Camera | / |

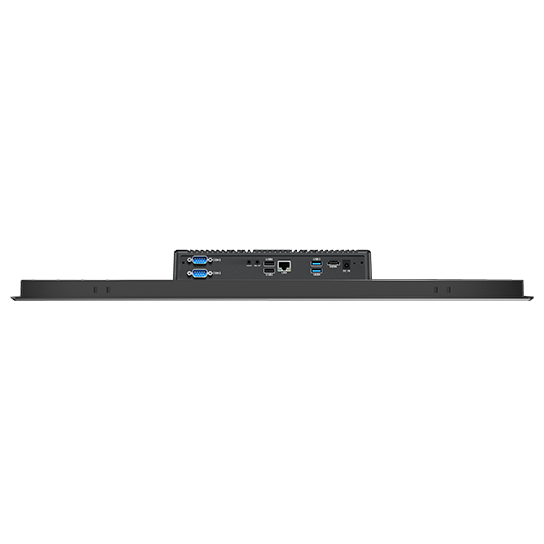

| I/O Interface | Standard USB-A USB3.0*2 USB2.0*2 Power interface DC 12V Power connector *1 ∮ 3.5mm Standard Earphone Jack *1 RJ45*2 (10M/100M/1000M adaptive) DB9 PORT RS232 *2 (Configurable via onboard jumper cap to: RS485*1, RS232*1) HDMI 2.0a*1 |
| Power adapter | AC100V ~ 240V、50Hz/60Hz output DC 12V/4A |
| Wireless Communications | |
| WIFI | WiFi 802.11(ac), 2.4G+5.0G, dual frequency WiFi |
| Bluetooth | BT5.0 |
| 2G/3G/4G/5G | 2G/3G/4G |
| GNSS | / |
| Performance parameters | |
| CPU | Intel® Celeron® Processor N5100 |
| GPU | Intel UHD |
| Operating system | Windows 10/11 |
| Memory | 8GB |
| Storage capacity | 128GB |
| Battery Performance | |
| Battery | / |
| Data collection | |
| NFC | NO |
| 1D | NO |
| 2D | NO |
| Fingerprint | NO |
| Product reliability | |
| Operating temperature | -20℃~60℃ |
| Storage temperature | -30℃~70℃ |
| Humidity | 95%, no condensation |
| Protection level | IP65 Front Panel |
| Drop height | 1.22m drop resistance |
The 21.5 inch industrial panel pc P21J is a powerhouse. Powered by Intel® Celeron® Processor N5100 and running Windows 10/11. Fanless thermal design ensures 24/7 reliability. It resists electromagnetic interference and static, and has an IP65 rating for dust and water protection.
