EM-P21A Intel Core i5-1235U 21.5 Inch Windows Industrial Panel PC
TF:
006124-HW-EMDOOR-024
| Basic parameters | |
| Dimensions | 537.02 x 324.02 x 57.60 mm |
| Machine weight | 5.05 kg |
| Machine color | Black |
| Display | 21.5 inch LCD 16:9, resolution 1920*1080 , 250nits |
| Touch screen | 10 PCAP |
| Camera | / |

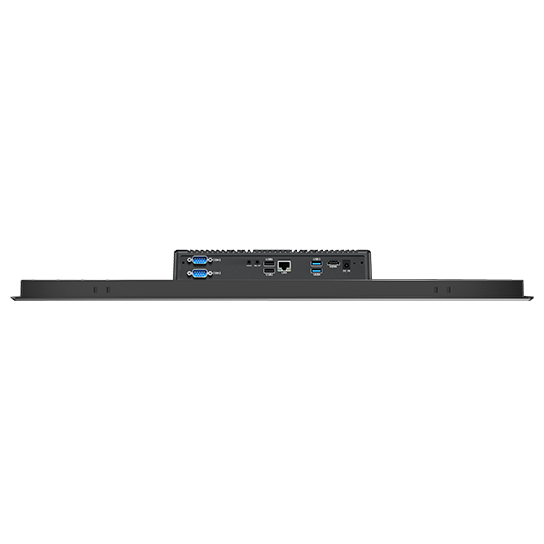

| I/O Interface | Type A USB: USB3.0 *4 Power interface DC 19V *1 Standard Earphone Jack *1 RJ45 *2 DB9 PORT RS232 *2 (Configurable via onboard jumper cap to: RS485*1,RS232*1) HDMI *1 M2*1 M.2 2280 standard interface (Support SATAIlI/PCIE3.0X4 signal) |
| Power adapter | AC100V ~ 240V、50Hz/60Hz output DC 19V/3.42A |
| Wireless Communications | |
| WIFI | WiFi 802.11(a/b/g/n/ac/ax ) 2.4G+5G , support WIFI6 |
| Bluetooth | BT5.1 |
| 2G/3G/4G/5G | 2G/3G/4G |
| GNSS | / |
| Performance parameters | |
| CPU | i5-1235U |
| GPU | Intel® Iris® Xe Graphics eligible |
| Operating system | Windows11 |
| Memory | 8GB |
| Storage capacity | 128GB |
| Battery Performance | |
| Battery | / |
| Data collection | |
| NFC | NO |
| 1D | NO |
| 2D | NO |
| Fingerprint | NO |
| Product reliability | |
| Operating temperature | -20℃~60℃ |
| Storage temperature | -30℃~70℃ |
| Humidity | 95%, no condensation |
| Protection level | IP65 Front Panel |
| Drop height | 1.22m drop resistance |

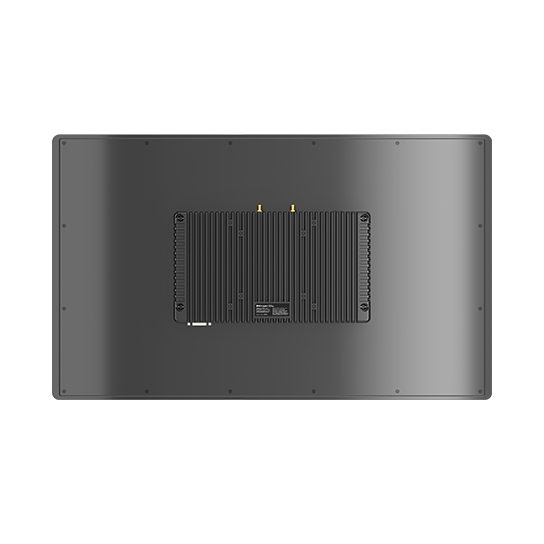

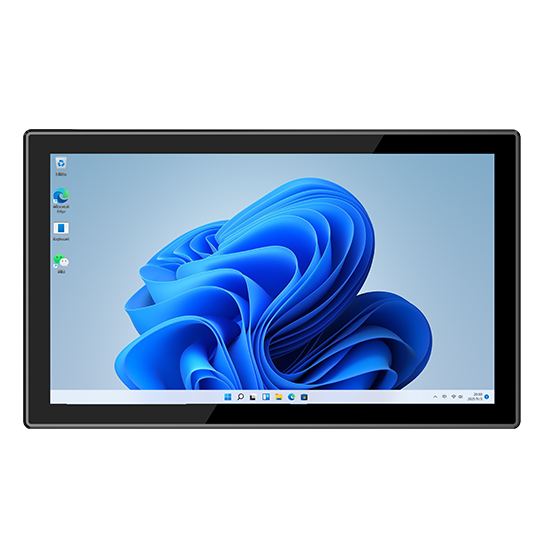

The 21.5 inch industrial panel pc P21A is a powerhouse. Powered by i5-1235U processors and running Windows 11. Fanless thermal design ensures 24/7 reliability. It resists electromagnetic interference and static, and has an IP65 rating for dust and water protection.
