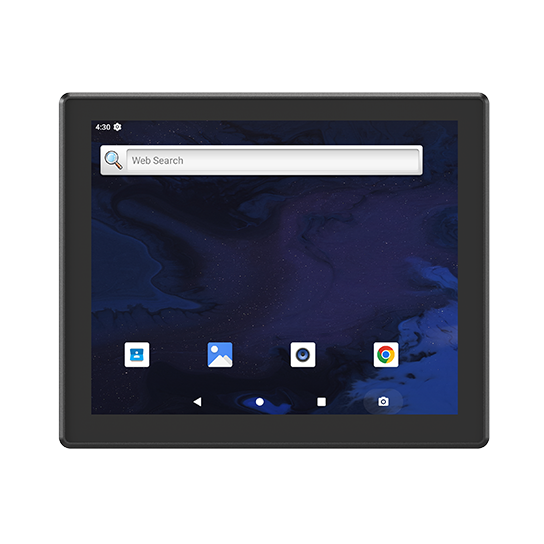

EM-P17R RK3568 Quad-core 17 Inch Industrial Panel PC Android 12
TF:
006125-HW-EMDOOR-025
| Basic parameters | |
| Dimensions | 401*332*57 mm |
| Machine weight | 4.18kg |
| Machine color | Black |
| Display | 17 inch LCD 4:3, resolution 1280*1024, 500nits |
| Touch screen | 10 PCAP |
| Camera | / |
| I/O Interface | Type A USB: USB3.0*1,USB3.0*1OTG USB2.0*2 DCIN 12V-24V Power connector *1 3.5mm Standard Earphone Jack *1 RJ45*1 (10M/100M/1000M adaptive) DB9 PORT RS232*2 (Mainboard switchable to RS485: RS485*1,RS232*1) HDMI*1 |
| Power adapter | AC100V ~ 240Vă50Hz/60Hz output DC 12V/4A |
| Wireless Communications | |
| WIFI | WiFi 802.11a/b/g/n/ac,frequency 2.4G+5.8G dual band WIFI |
| Bluetooth | BT5.0 |
| 2G/3G/4G/5G | 2G/3G/4G |
| GNSS | / |
| Performance parameters | |
| CPU | RK3568 |
| GPU | Mali-G52-2EE |
| Operating system | Android 12 |
| Memory | 4GB |
| Storage capacity | 64GB |
| Battery Performance | |
| Battery | / |
| Data collection | |
| NFC | NO |
| 1D | NO |
| 2D | NO |
| Fingerprint | NO |
| Product reliability | |
| Operating temperature | -20â~60â |
| Storage temperature | -30â~70â |
| Humidity | 95%, no condensation |
| Protection level | IP65 Front Panel |
| Drop height | 1.22m drop resistance |
The 17 inch industrial panel pc P17R is a powerhouse. Powered by RK3568 Processor and running Android 12. Fanless thermal design ensures 24/7 reliability. It resists electromagnetic interference and static, and has an IP65 rating for dust and water protection.
CPU: RK3568
