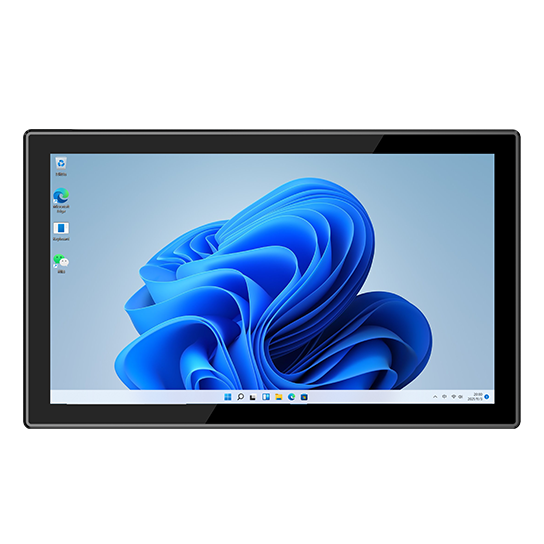

EM-P15J Intel Celeron N5100 15.6 Inch Windows Industrial Panel PC
TF:
006128-HW-EMDOOR-028
| Basic parameters | |
| Dimensions | 388.63 x 248.43 x 54.95 mm |
| Machine weight | 2.4kg |
| Machine color | Black |
| Display | 15.6-inch LCD 16:9, resolution 1920x1080, 220nits |
| Touch screen | 10 PCAP |
| Camera | / |
| I/O Interface | USB3.0*2 USB2.0*2 DCIN 12V-24V Power connector *1 Standard Earphone Jack *1 lRJ45 *2 DB9 PORT RS232 *2 (Configurable viaonboard jumper cap to:RS485*1，RS232*1) HDMI2.0a *1 |
| Power adapter | AC100V ~ 240V、50Hz/60Hz output DC 12V/4A |
| Wireless Communications | |
| WIFI | WIFI 802.11 (a/b/g/n/ac) Frequency: 2.4G+5G |
| Bluetooth | BT5.0 |
| 2G/3G/4G/5G | 2G/3G/4G |
| GNSS | / |
| Performance parameters | |
| CPU | N5100 |
| GPU | Intel UHD |
| Operating system | Windows 11 Pro |
| Memory | 8GB |
| Storage capacity | 128GB |
| Battery Performance | |
| Battery | / |
| Data collection | |
| NFC | NO |
| 1D | NO |
| 2D | NO |
| Fingerprint | NO |
| Product reliability | |
| Operating temperature | -20℃~60℃ |
| Storage temperature | -30℃~70℃ |
| Humidity | 95%, no condensation |
| Protection level | IP65 Front Panel |
| Drop height | 1.22m drop resistance |
The 15.6 inch industrial panel pc P15J is a powerhouse. Powered by Intel® Celeron® Processor N5100 processors and running Windows 11 Pro. Fanless thermal design ensures 24/7 reliability. It resists electromagnetic interference and static, and has an IP65 rating for dust and water protection.
