EM-P10R Rockchip RK3568 10.1 Inch Android Industrial PC P10R
TF:
006129-HW-EMDOOR-029
| Basic parameters | |
| Dimensions | 257.2*170*45.95mm |
| Machine weight | 1.2kg |
| Machine color | Black |
| Display | 10.1-inch LCD 16:10, resolution 800x1280, 700nits |
| Touch screen | 10 PCAP |
| Camera | / |
| I/O Interface | Standard USB-A:USB3.0*2+USB2.0*2 Power interface DC IN 12V-24V Power connector *1 Standard Earphone Jack *1 RJ45 *1 DB9 PORT RS232 *2 (Configurable via onboard jumpercap to: RS485*1，RS232*1) HDMI*1 |
| Power adapter | AC100V ~ 240V、50Hz/60Hz output DC 12V/4A |
| Wireless Communications | |
| WIFI | 802.11a/b/g/n/ac |
| Bluetooth | BT5.0 |
| 2G/3G/4G/5G | 2G/3G/4G |
| GNSS | / |
| Performance parameters | |
| CPU | RK3568 |
| GPU | Mali-G52-2EE |
| Operating system | Android 12 |
| Memory | 4GB |
| Storage capacity | 64GB |
| Battery Performance | |
| Battery | / |
| Data collection | |
| NFC | NO |
| 1D | NO |
| 2D | NO |
| Fingerprint | NO |
| Product reliability | |
| Operating temperature | -20℃~60℃ |
| Storage temperature | -30℃~70℃ |
| Humidity | 95%, no condensation |
| Protection level | IP65 Front Panel, MIL-STD-810H certified |
| Drop height | 1.22m drop resistance |

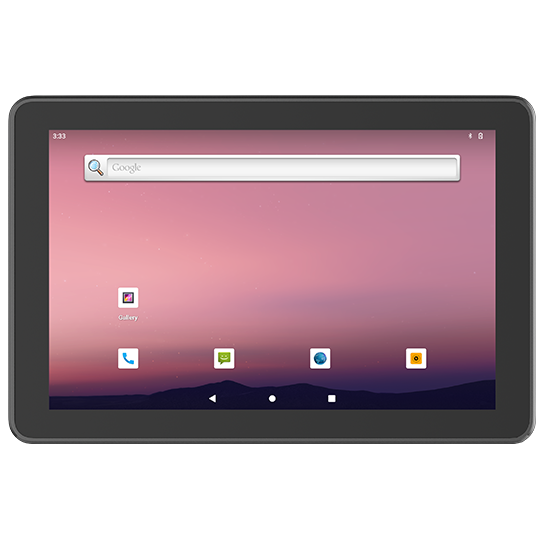

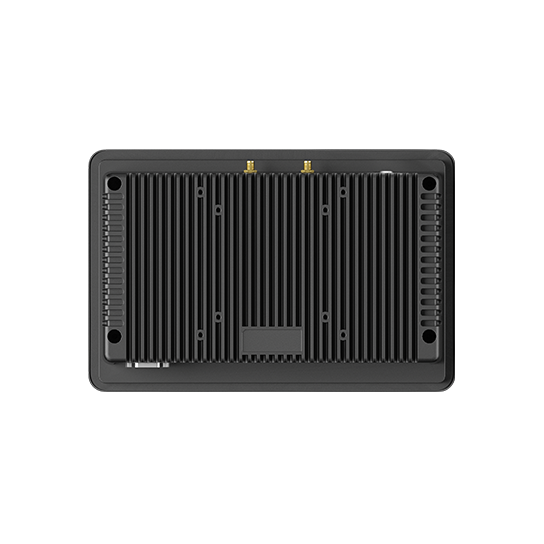

The 10.1 inch industrial panel pc P10R is a powerhouse. Powered by RK3568 processors and running Android 12. Fanless thermal design ensures 24/7 reliability. It resists electromagnetic interference and static, and has an IP65 rating for dust and water protection.
