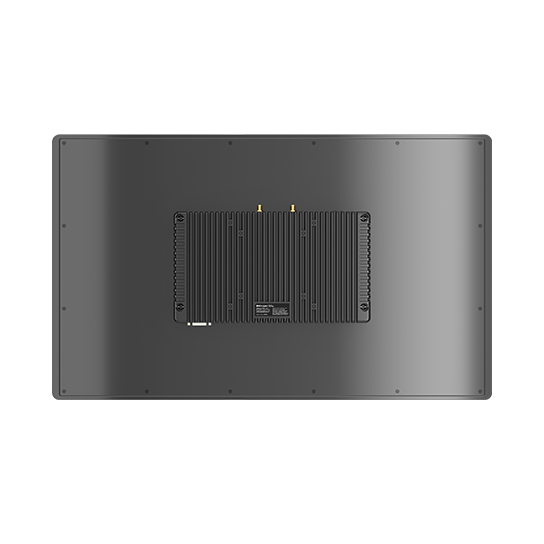

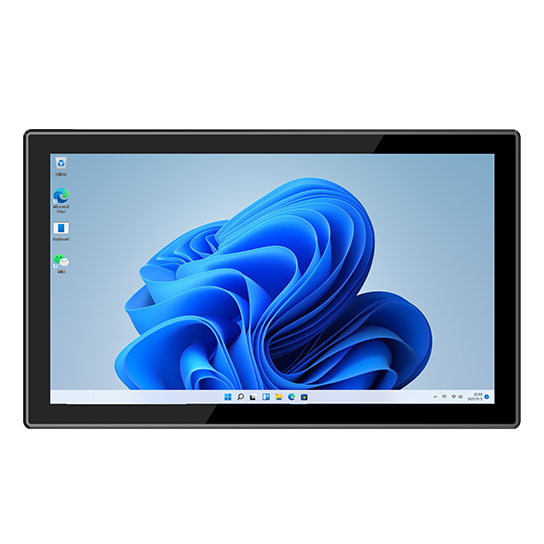

EM-P10J Intel Celeron N5100 10.1 Inch Windows Industrial PC
TF:
006130-HW-EMDOOR-030
| Basic parameters | |
| Dimensions | 257.2*170*45.95mm |
| Machine weight | 1.2kg |
| Machine color | Black |
| Display | 10.1-inch LCD 16:10, resolution 800x1280, 700nits |
| Touch screen | 10 PCAP, G+G |
| Camera | / |
| I/O Interface | Standard USB-A USB3.0*2 +USB2.0*2 Powerinterface DCIN 12V-24V Power connector *1 ∮ 3.5mm Standard Earphone Jack *1 RJ45 *2, DB9 PORT RS232 *2 (Configurable via onboard jumper cap to RS485*1, RS232*1) HDM12.0a *1 |
| Power adapter | AC100V ~ 240V、50Hz/60Hz output DC 12V/4A |
| Wireless Communications | |
| WIFI | Frequency band: WIFI 802.11 (a/b/g/n/ac) Frequency: 2.4G+5G dual frequency WIFI |
| Bluetooth | BT5.0 |
| 2G/3G/4G/5G | 2G/3G/4G |
| GNSS | / |
| Performance parameters | |
| CPU | Intel® Celeron® Processor N5100 |
| GPU | / |
| Operating system | Windows 11 Home |
| Memory | 8GB |
| Storage capacity | 128GB |
| Battery Performance | |
| Battery | / |
| Data collection | |
| NFC | NO |
| 1D | NO |
| 2D | NO |
| Fingerprint | NO |
| Product reliability | |
| Operating temperature | -20℃~60℃ |
| Storage temperature | -30℃~70℃ |
| Humidity | 95%, no condensation |
| Protection level | IP65 certified, MIL-STD-810H certified |
| Drop height | 1.22m drop resistance |
The 10.1 inch industrial panel pc P10J is a powerhouse. Powered by Intel® Celeron® Processor N5100 processors and running Windows 11. Fanless thermal design ensures 24/7 reliability. It resists electromagnetic interference and static, and has an IP65 rating for dust and water protection.
