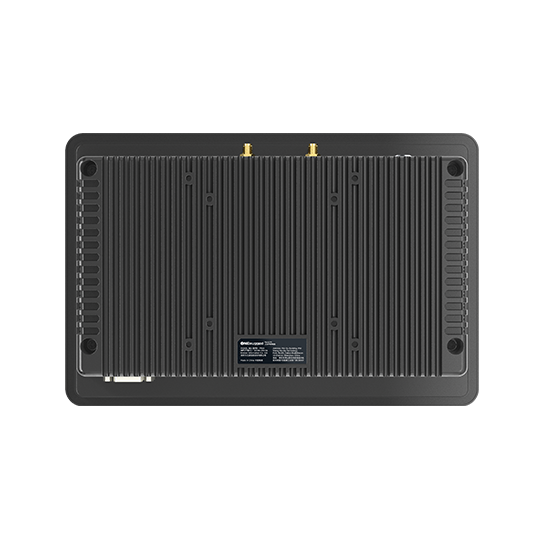

EM-P10A 10.1 Inch Industrial Panel PC Windows
TF:
006131-HW-EMDOOR-031
| Basic parameters | |
| Dimensions | 257.2*170*45.95mm |
| Machine weight | 1.2kg |
| Machine color | Black |
| Display | 10.1-inch LCD 16:10, resolution 800x1280, 700nits |
| Touch screen | 10 PCAP |
| Camera | / |
| I/O Interface | Type-A USB3.0*4 Power interface DC 19V *1 (Support 12-24V) f 3.5mm Standard Earphone Jack *1 RJ45 *2 (10M/100M/1000M adaptive) DB9 PORT RS232 *2(Configurable via onboard jumper cap to: RS485*1, RS232*1) HDMI *1 M2 *1 M.2 2280 standard interface (Support SATAIlI/PCIE3.0X4 signal) |
| Power adapter | AC100V ~ 240V、50Hz/60Hz output DC 19V/3.42A |
| Wireless Communications | |
| WIFI | WIFI 802.11(a/b/g/n/ac/ax ) 2.4G+5G , support WIFI6 |
| Bluetooth | BT5.1 |
| 2G/3G/4G/5G | 2G/3G/4G(Optional) |
| GNSS | / |
| Performance parameters | |
| CPU | i5-1235U |
| GPU | Intel® Iris® Xe Graphics eligible |
| Operating system | Windows11 |
| Memory | 8GB |
| Storage capacity | 128GB |
| Battery Performance | |
| Battery | / |
| Data collection | |
| NFC | NO |
| 1D | NO |
| 2D | NO |
| Fingerprint | NO |
| Product reliability | |
| Operating temperature | -20℃~60℃ |
| Storage temperature | -30℃~70℃ |
| Humidity | 95%, no condensation |
| Protection level | IP65 Front Panel |
| Drop height | 1.22m drop resistance |
The 10.1 inch industrial panel pc P10A is a powerhouse. Powered by i5-1235U processors and running Windows 11. Fanless thermal design ensures 24/7 reliability. It resists electromagnetic interference and static, and has an IP65 rating for dust and water protection.
