EM-I20J 12.2 Inch Intel Windows Industrial Rugged Tablet
TF:
006104-HW-EMDOOR-004
| Basic parameters | |
| Dimensions | 339.3*230.3*26mm |
| Machine weight | 1500g |
| Machine color | Black |
| Display | 12.2 inch FHD 16:10，1920×1200，650nits |
| Touch screen | 5 point G+G capacitive touch screen |
| Camera | Front 5.0MP + rear 8.0MP |
| I/O Interface | USB 3.0 Type-A x 1, USB Type-C x 1, SIM Card x 1, TF Card x 1, HDMI 2.0a Mini x 1, 12PIN Pogo Pin x 1, Φ3.5mm standard earphone jack x 1, Φ5.5mm DC jack x 1 |
| Power adapter | AC100V ~ 240V, 50Hz/60Hz, Output DC 19V/3.42A |
| Wireless Communications | |
| WIFI | Wi-Fi 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G |
| Bluetooth | BT5.0 Transmission distance: 10m |
| 2G/3G/4G/5G | 4G/5G |
| GNSS | Support GPS, Glonass |
| Performance parameters | |
| CPU | Intel JASPER LAKE N5105 Processor 4-core 4-thread |
| GPU | Intel® UHD Graphics 620 |
| Operating system | Windows 11 IOT |
| Memory | 8GB |
| Storage capacity | 128GB |
| Battery Performance | |
| Battery | 6300mAh/7.4V / Removable Li-polyment Battery / 4 hours |
| Data collection | |
| NFC | Optional |
| 1D | NO |
| 2D | Optional |
| Fingerprint | YES |
| Product reliability | |
| Operating temperature | -20℃~60℃ |
| Storage temperature | -30℃~70℃ |
| Humidity | 95%, no condensation |
| Protection level | IP65 certified, MIL-STD-810H certified |
| Drop height | 1.22m drop resistance |

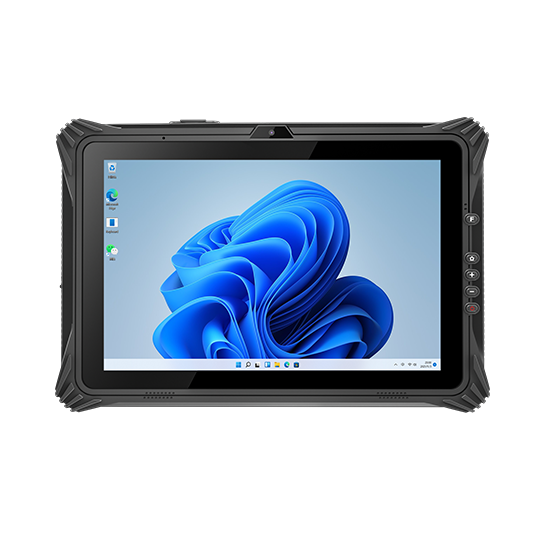

The rugged tablet PC I20J is a 12.2 inch Windows 11 industrial rugged tablet. Powered by the Intel JASPER LAKE N5105 processor and running on Windows 11 IOT, it's solid, practical, professional, and efficient.
