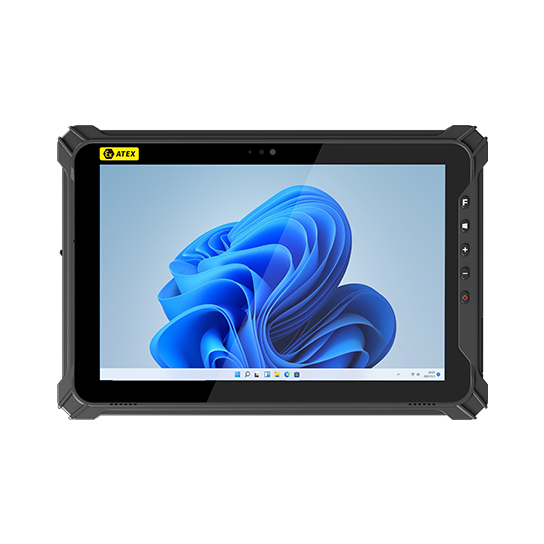

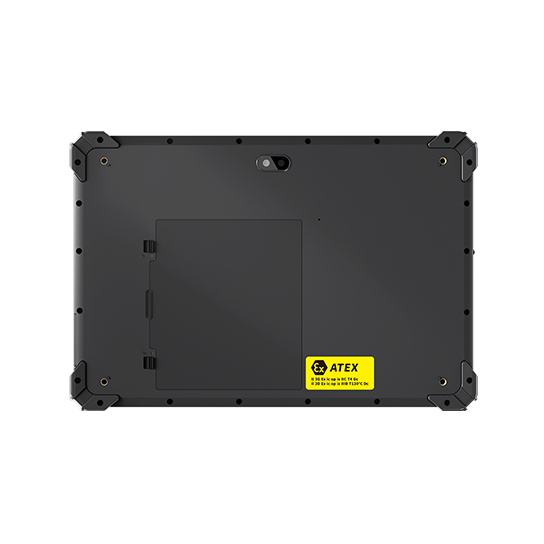

EM-I17J (EX) 10.1 Inch Explosion-Proof Rugged Tablet PC
TF:
006115-HW-EMDOOR-015
| Basic parameters | |
| Dimensions | 274.9*188.7*23.1 mm |
| Machine weight | 1140g |
| Machine color | Black |
| Display | 10.1 inch IPS screen, 1920x1200 TFT |
| Touch screen | 10 point G+G capacitive touch screen |
| Camera | Front 5.0MP + rear 8.0MP |
| I/O Interface | USB3.0 x 1 (USB A port, HOST data transmission), Type C 3.1 x 1 (Charging and Data transmission, Full function Type-C), Φ3.5mm standard earphone jack x 1, HDMI 2.0a Mini x 1, Three in one card holder (Micro SD card, up to 512GB; Nano SIM x 1) 12PIN Pogo Pin x 1 |
| Power adapter | PD Fast Charge Adapter +Type-C Data Cable（1m） |
| Wireless Communications | |
| WIFI | WIFI 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI |
| Bluetooth | BT5.1 Transmission distance: 10 m |
| 2G/3G/4G/5G | 4G |
| GNSS | Support GPS , GLONASS |
| Performance parameters | |
| CPU | Intel JASPER LAKE N5100 processor |
| GPU | Intel® HD Graphics Gen 11 LP |
| Operating system | Windows 11 Home |
| Memory | 8GB |
| Storage capacity | 128GB |
| Battery Performance | |
| Battery | 5000mAh/7.6V / Removable Li-polyment Battery / 8 hours |
| Data collection | |
| NFC | Optional |
| 1D | Optional |
| 2D | Optional |
| Fingerprint | NO |
| Product reliability | |
| Operating temperature | -20℃~60℃ |
| Storage temperature | -30℃~70℃ |
| Humidity | 95%, no condensation |
| Protection level | IP65 certified, MIL-STD-810G certified |
| Drop height | 1.22m drop resistance |
The 10.1-inch Windows Explosion-Proof Tablet PC EM - I17J(EX) is a rugged device with an Intel Jasper Lake Celeron N5100 processor, ATEX 2/22 Zone explosion - proof certification, selectable extension interfaces, and CECP energy - efficiency certification, ideal for potentially explosive and hazardous environments.
