EM-I14M 14 Inch Rugged AI Tablet PC Windows 11
TF:
006102-HW-EMDOOR-002
| Basic parameters | |
| Dimensions | 366.2mmx246.9mmx24.8mm |
| Machine weight | TBD |
| Machine color | Black |
| Display | 14 inch TFT 16:9, 1920×1080, 1000 nits |
| Touch screen | 10-point capacitive screen |
| Camera | Front 5.0MP(USB)+ Rear 13.0MP(mipi) |
| I/O Interface | USB3.2 *1, USB2.0 *2 TYPE-C, Supports Thunderbolt 4 ∮3.5mm Standard Earphone Jack *1 HDMI 2.0a mini *1 SIM card *1，TF card *1 RJ45 *1 10M/100M/1000M self-adaptive， RJ45 *1 10M/100M/1000Mself-adaptive(USB2.0), supports Gigabit Ethernet protocol RS232 *1, 9 fully functional lines DC19V/3.78A ∮5.5mm power interface *1 12PIN Pogo Pin (USB & Charging) *1 |
| Power adapter | AC100~240V, 19V/3.78A 71.82W output US Standard Optional: EU Standard |
| Wireless Communications | |
| WIFI | AX200 bands: Supports Wi-Fi 6 802.11a,b,d,e,g,h,i,k, n,r,u,v,w,ac,ax Frequency: 2.4G+5.8G Dual-band WIFI |
| Bluetooth | BT5.1(BLE) class 1 Transmission distance: 10m |
| 2G/3G/4G/5G | 4G/5G |
| GNSS | Supports single GPS or single Glonass, default GPS |
| Performance parameters | |
| CPU | Intel® Core™ Ultra 5 processor 125H |
| GPU | iGfx/dGfx (Intel Xe LPG Graphics) |
| Operating system | Windows 11 PRO |
| Memory | 16GB DDR5(4800MHz), optional 32GB |
| Storage capacity | 256GB SSD |
| Battery Performance | |
| Battery | Built-in- 1300mAh/11.1V / Built-in Polymer Lithium-ion Battery, Non-removable / 1.5 hours Hot-swappable - 4850mah/11.55V / Removable Li-polyment Battery / 8 hours |
| Data collection | |
| NFC | Optional |
| 1D | Optional |
| 2D | Optional |
| Fingerprint | YES |
| Product reliability | |
| Operating temperature | -20℃~60℃ |
| Storage temperature | -30℃~70℃ |
| Humidity | 95%, no condensation |
| Protection level | IP65 certified, MIL-STD-810H certified |
| Drop height | 1.22m drop resistance |

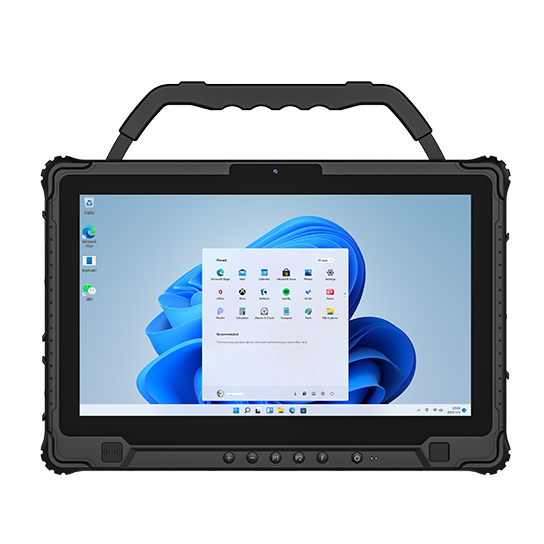

The rugged tablet PC I14M is a 14 inch Rugged AI Tablet PC Windows 11. Powered by the Intel® Core™ Ultra 5 processor 125H processor and running on Windows 11 PRO, it's solid, practical, professional, and efficient.
