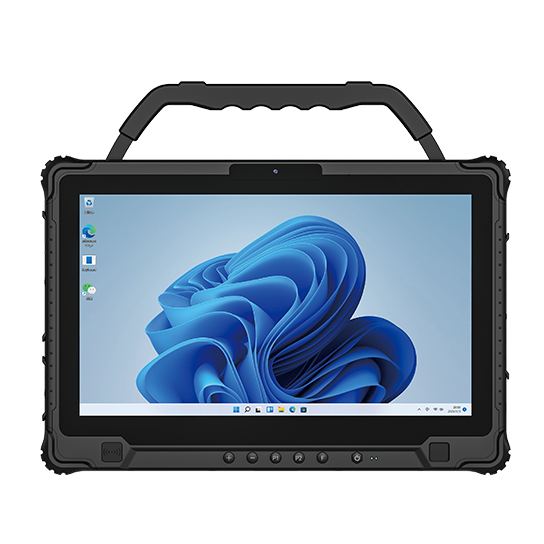

EM-I14A 14 Inch Ultra-large Rugged Tablet Intel Core i5/i7 Windows 11
TF:
006103-HW-EMDOOR-003
| Basic parameters | |
| Dimensions | 366.2mmx246.9mmx24.8mm |
| Machine weight | TBD |
| Machine color | Black |
| Display | 14 inch LCD 16:9, 1920x1080, 1000 nits |
| Touch screen | 10 point G+G capacitive touch screen |
| Camera | Front 5.0MP (USB)+ Rear 8.0MP (USB) |
| I/O Interface | USB3.2 *1, USB2.0 *2, TYPE-C, Supports Thunderbolt 4, HDMI 2.0a mini x1, SIM *1, TF *1, DB9 (RS232) *1、RJ45 *2, 12PIN Pogo Pin *1, 3.5mm Standard Earphone Jack *1, DC19V/3.78A Power port *1, M.2-2280 PCIe interface *1, optional SSD, M.2, E-KEY, PCIE interface *1, optional Custom module |
| Power adapter | AC100V ~ 240V, Output DC 19V/3.78A 71.82W(EU Standard) Optional: US Standard |
| Wireless Communications | |
| WIFI | WiFi 6, 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax |
| Bluetooth | BT5.1 Transmission distance: 10m |
| 2G/3G/4G/5G | 4G/5G |
| GNSS | Supports single GPS or single glonass, default GPS |
| Performance parameters | |
| CPU | Intel i5-1235U |
| GPU | Intel® Iris® Xe Graphics eligible |
| Operating system | Windows 11 PRO |
| Memory | 16GB/32GB |
| Storage capacity | 256GB SSD Optional 512GB/1TB |
| Battery Performance | |
| Battery | Built-in - 1300mah/11.1V / Built in Li_polyment,battery loadable / 1.5 hours Hot-swappable - 4700mah/11.4V / Li_polyment, removeable battery / 8 hours |
| Data collection | |
| NFC | Optional |
| 1D | Optional |
| 2D | Optional |
| Fingerprint | YES |
| Product reliability | |
| Operating temperature | -20℃~60℃ |
| Storage temperature | -30℃~70℃ |
| Humidity | 95%, no condensation |
| Protection level | IP65 certified, MIL-STD-810H certified |
| Drop height | 1.22m drop resistance |
The rugged tablet PC I14A is a 14 inch Windows 11 ultra-large rugged tablet. Powered by the Intel i5-1235U processor and running on Windows 11 PRO, it's solid, practical, professional, and efficient.
