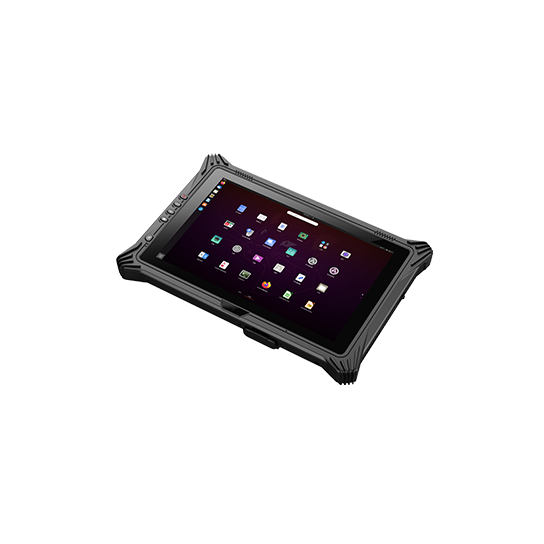

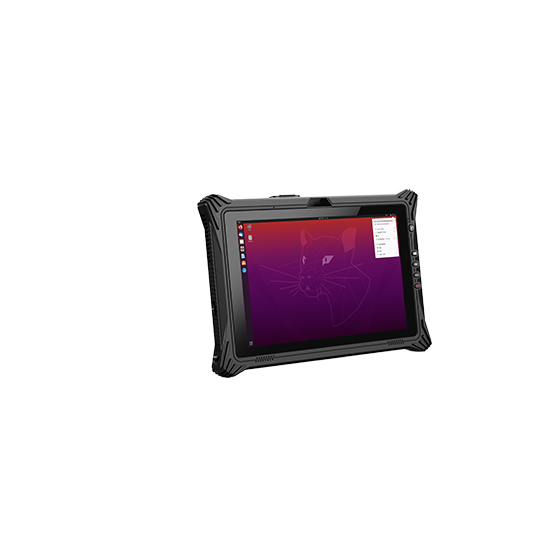

EM-I10A 10.1 Inch Windows 11 Rugged Tablet PC
TF:
006119-HW-EMDOOR-019
| Basic parameters | |
| Dimensions | 289.9*196.7*27.4mm |
| Machine weight | 1230g |
| Machine color | Black |
| Display | 10.1 inch IPS 16:10, 1200×1920, 700 nits |
| Touch screen | 10 point G+F+F capacitive touch screen |
| Camera | Front 2.0MP Rear 8.0MP |
| I/O Interface | USB 3.1 Type-A x 1, USB Type-C x 1, SIM Card x 1, TF Card x 1, HDMI 2.1a Mini x 1, 12PIN Pogo Pin x 1, Φ3.5mm standard earphone jack x 1, Φ5.5mm DC jack x 1 |
| Power adapter | AC100V ~ 240V, 50Hz/60Hz, Output DC 19V/3.42A |
| Wireless Communications | |
| WIFI | Wi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax (2.4G+5.8G) |
| Bluetooth | BT5.1 Transmission distance: 10 m |
| 2G/3G/4G/5G | 4G |
| GNSS | Support GPS , GLONASS, Optional Beidou |
| Performance parameters | |
| CPU | Intel Core i5-1235U/i7-1255U |
| GPU | Intel® Iris® Xe Graphics eligible |
| Operating system | Windows 11 Home |
| Memory | 16GB |
| Storage capacity | 128GB |
| Battery Performance | |
| Battery | 5000mAh/7.4V /Built-in Li-polymer battery / 4.5 hours |
| Data collection | |
| NFC | Optional |
| 1D | NO |
| 2D | Optional |
| Fingerprint | NO |
| Product reliability | |
| Operating temperature | -20℃~60℃ |
| Storage temperature | -30℃~70℃ |
| Humidity | 95%, no condensation |
| Protection level | IP65 certified, MIL-STD-810G certified |
| Drop height | 1.22m drop resistance |
10.1" Rugged Windows 11 Tablet with Intel Core i5/i7: IP65/MIL-STD-810G certified and Triple GNSS (GPS/BDS/GLONASS) for industrial, logistics and harsh environments.
