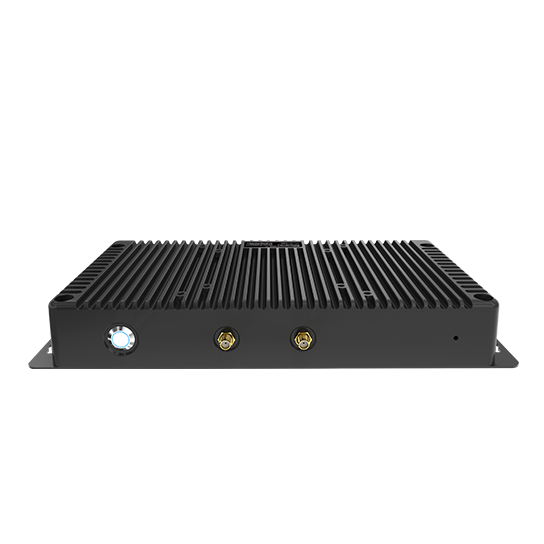

EM-D10R 10.1 Inch Android 12 Industrial Digital Signage
TF:
006132-HW-EMDOOR-032
| Basic parameters | |
| Dimensions | 315mm*168mm*38mm |
| Machine weight | TBD |
| Machine color | Black (Optional: Silver) |
| Display | 10.1-inch LCD 16:10, resolution 800x1280, 700nits |
| Touch screen | 10-point capacitive touch |
| Camera | / |
| I/O Interface | SIM *1 TF*1 (Internal) TypeA USB (External) USB3.0*1+USB3.0*1OTG+USB2.0*2 Power Port DC 12V *1+Phoenix Terminal RJ45 *1 (10/100/1000M Adaptive) |
| Power adapter | 6th-Level Desktop DC Adapter (Category 5/12V4A), Input: 100~240V AC 50/60Hz Output: 12VDC 4.0A, UL2464, 20AWG |
| Wireless Communications | |
| WIFI | WIFI 802.11 (a/b/g/n/ac) 2.4G+5G |
| Bluetooth | BT5.0 |
| 2G/3G/4G/5G | 4G（Optional） |
| GNSS | / |
| Performance parameters | |
| CPU | RK3568 |
| GPU | Mali-G52-2EE |
| Operating system | Android 12 |
| Memory | 4GB |
| Storage capacity | 64GB |
| Battery Performance | |
| Battery | / |
| Data collection | |
| NFC | Yes |
| 1D | Optional |
| 2D | Optional |
| Fingerprint | NO |
| Product reliability | |
| Operating temperature | -20℃~60℃ |
| Storage temperature | -30℃~70℃ |
| Humidity | 95%, no condensation |
| Protection level | IP65 Front Panel |
| Drop height | / |
D10R Industrial Digital Signage: RK3568 and Android 12 drive rugged computing. Dual-band WiFi 5 & BT5.0 with 4G expansion. Modular chassis deploys wall/desktop/embedded setups across smart manufacturing, CNC, medical IoT nodes.
