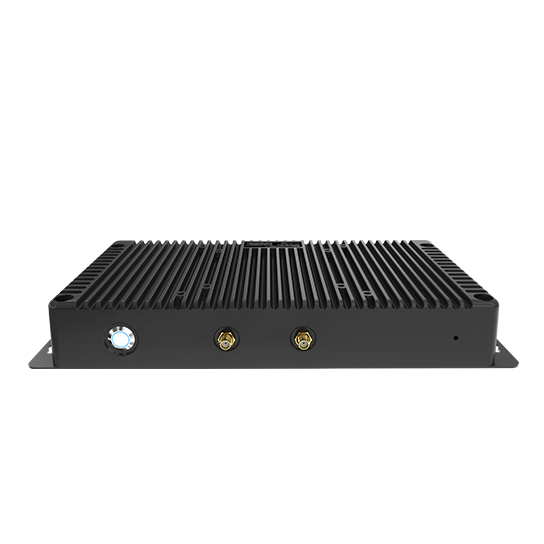

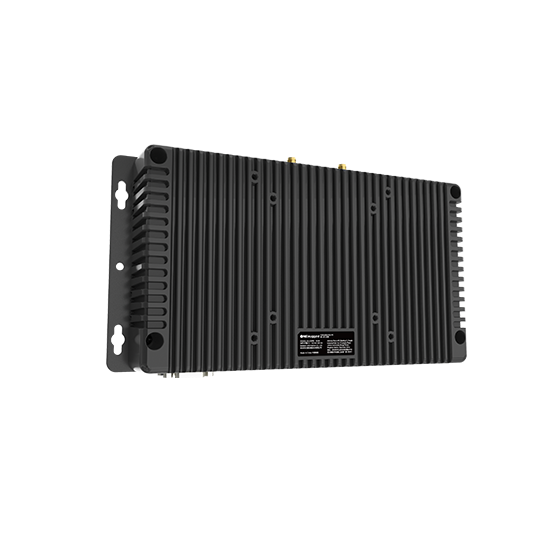

EM-B10R Rockchip RK3568 Fanless Embedded BOX PC
TF:
006133-HW-EMDOOR-033
| Basic parameters | |
| Dimensions | 264*135.2*37.2 mm |
| Machine weight | 1.0 kg |
| Machine color | Black |
| Display | / |
| Touch screen | / |
| Camera | / |

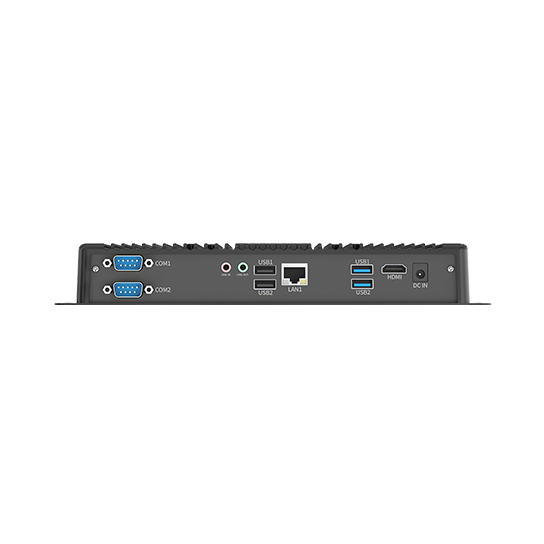

| I/O Interface | SIM *1 TF*1 USB3.0 *1 USB3.0 *1OTG USB2.0 *2 DC IN 12V-24V *1 Standard earjack *1 RJ45 *1 HDMI *1 DB9 RS232 *2 M.2*1 |
| Power adapter | AC100V ~ 240V, 50Hz/60Hz output DC 12V/4A |
| Wireless Communications | |
| WIFI | 802.11a/b/g/n/ac |
| Bluetooth | BT5.0 |
| 2G/3G/4G/5G | / |
| GNSS | / |
| Performance parameters | |
| CPU | RK3568 |
| GPU | Mali-G52-2EE |
| Operating system | Android 12 |
| Memory | 4GB |
| Storage capacity | 64GB |
| Battery Performance | |
| Battery | / |
| Data collection | |
| NFC | NO |
| 1D | NO |
| 2D | NO |
| Fingerprint | NO |
| Product reliability | |
| Operating temperature | -20℃~60℃ |
| Storage temperature | -30℃~70℃ |
| Humidity | 95%, no condensation |
| Protection level | / |
| Drop height | / |
B10R Industrial Embedded PC: RK3568 and Android 12 drive rugged computing. Dual-band WiFi 5 & BT5.0 with 4G expansion. Modular chassis deploys wall/desktop/embedded setups across smart manufacturing, CNC, medical IoT nodes.
