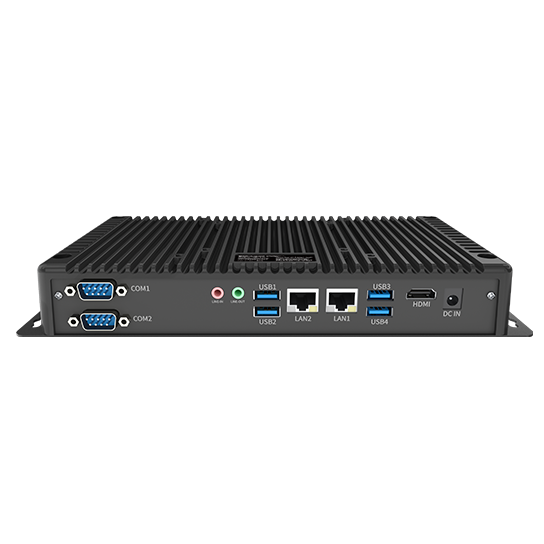

EM-B10A Intel i5-1235U Windows Embedded Box PC
TF:
006135-HW-EMDOOR-035
| Basic parameters | |
| Dimensions | 264*135.2*37.2 mm |
| Machine weight | Bare: 1.0 kg |
| Machine color | Black |
| Display | / |
| Touch screen | / |
| Camera | / |
| I/O Interface | USB3.0 *4 DC 19V *1 (Supports 12--24V) Standard Earphone Jack *1 RJ45 *2 HDMI*1 DB9 RS232*2 M.2*1 |
| Power adapter | Output DC 12V/4A |
| Wireless Communications | |
| WIFI | WiFi 802.11(a/b/g/n/ac/ax ) 2.4G+5G, supports WiFi6 |
| Bluetooth | BT5.1 |
| 2G/3G/4G/5G | 2G/3G/4G (Optional) |
| GNSS | / |
| Performance parameters | |
| CPU | i5-1235U |
| GPU | Intel® Iris® Xe Graphics eligible |
| Operating system | Windows 11 |
| Memory | 8GB |
| Storage capacity | 128GB |
| Battery Performance | |
| Battery | / |
| Data collection | |
| NFC | NO |
| 1D | NO |
| 2D | NO |
| Fingerprint | NO |
| Product reliability | |
| Operating temperature | -20℃~60℃ |
| Storage temperature | -30℃~70℃ |
| Humidity | 95%, no condensation |
| Protection level | / |
| Drop height | / |
B10A Embedded Box PC: Intel 12th-Gen Alder Lake & Win11 power industrial edge computing. PCIe 3.0 M.2 supports 512GB expandable storage. Modular design enables wall/desktop/embedded configs for smart factories, CNC systems, medical tech.
