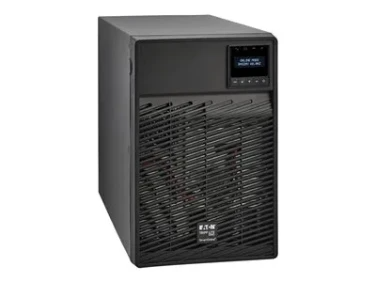

Eaton Tripplite Series Smartonline - Perp120V - 700VA - 630W - Double-Conversion
2532-HW-Eaton-038
Overview
This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline SU700XLCD provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.
| General | |
| Device Type | UPS - external |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 100/110/120/127 V |
| Frequency Provided | 50/60 Hz |
| Input Connectors | 1 x power NEMA 5-15R |

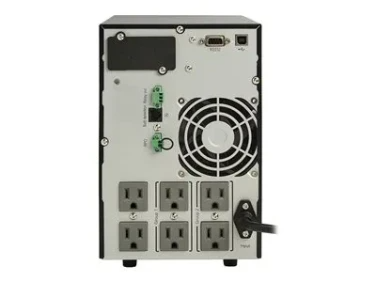

| Power Output Connectors Details | 6 x power NEMA 5-15 |
| Output Voltage | AC 100/110/120 V ± 2% - 50/60 Hz |
| Max Electric Current | 6.5 A |
| Power Capacity | 630 Watt / 700 VA |
| Dataline Surge Protection | Phone line - 1 input line / 1 output line |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 190 Joules |
| Efficiency | 89.84% at 100% Load |
| Power Factor (PF) | 0.9 |
| Battery | |
| Technology | Valve regulated lead-acid (VRLA) |
| Voltage Provided | 24 V |
| Run Time (Up To) | 5.9 min at full load ¦ 16.9 min at half load |
| Transfer Time | 0 ms |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Remote Management Protocol | SNMP |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x EPO (emergency power off) - RJ-11 |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Miscellaneous | |
| Cables Included | Power cable 8 ft ¦ USB cable - external ¦ Serial cable - external |
| Equipment Protection Value | 250000 US Dollars |
| Features | Metal housing, surge protection, noise protection, replaceable battery, cold-start function, LCD display, energy saving green topology, double conversion, cooling fan, LED indicators, audible alarm, power failure alarm, crest factor meter |
| Compliant Standards | cUL, FCC, REACH, RoHS |
| Software / System Requirements | |
| Software Included | TrippLite PowerAlert |
| Sustainability Information | |
| ENERGY STAR | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 96% (non-condensing) |
| Sound Emission | 51 dBA |
| Dimensions & Weight | |
| Width | 6.3 in |
| Depth | 13.9 in |
| Height | 9.9 in |
| Weight | 25.35 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 11.7 in |
| Shipping Depth | 22.4 in |
Reliable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting.
