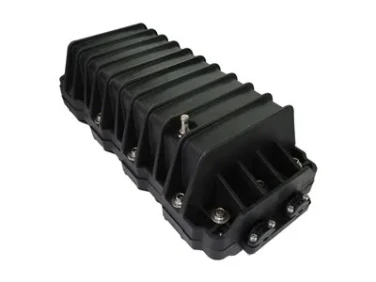

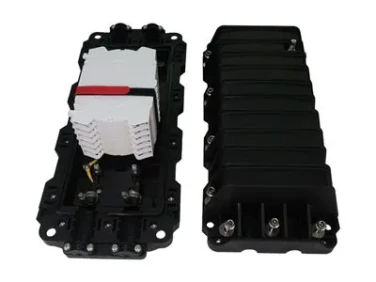

Eaton Tripp Lite Series Fiber Splice Horizontal Enclosure - 6 Splicing Trays, 144 Fiber Capacity, IP68 Rated - fiber-optic splice enclosure (horizontal)
2519-HW-Eaton-026
Overview
Provides Durable, Customizable Protection for Outdoor Fiber Cable Runs
This fiber splicing horizontal enclosure comes with six splice trays that accommodate up to 24 unterminated cables each to give you more flexibility in adjusting cable lengths and connection types directly on-site. The N600H-0144-6 is ideal for singlemode and multimode fiber infrastructure in municipal broadband installations, including residential (Fiber to the Home or FTTH) and commercial (Fiber to the Premise or FTTP). This also includes underground fiber runs and those spanning utility poles.
| General | |
| Product Type | Fiber-optic splice enclosure horizontal |
| Placing / Mounting | Pole mountable, wall mountable, aerial mountable, underground mountable |
| Indoor / Outdoor | Outdoor |
| Package Content | 144 splicing tubes, 20 cable ties, 2 choke plugs, EVA tube, silicon oil, insulation tape, cleaning paper, aerial mounting hardware |
| Product Material | Plastic |
| Width | 7.8 in |
| Depth | 18.6 in |
| Height | 5.9 in |
| Enclosure Color | Black |
| Cabling & Wiring | |
| Port Qty | 4 ports |
| Technology | Fiber optic |
| Features | Single-mode, multimode |
| Compliant Standards | OM1/OM2/OM3/OM4/OM5/OS2 |
| Miscellaneous | |
| Mounting Kit | Included |
| Features | 6 splicing trays, up to 144 fibers, hinged splicing trays, dust protection, water protection, built-in labels log |
| Compliant Standards | RoHS, REACH, IP68 |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.4 in |
| Shipping Depth | 22.4 in |
| Shipping Height | 9.1 in |
| Shipping Weight | 10.36 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | -49 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 5 - 85% RH (non-condensing) |
Flexible Connections in Your Fiber Network

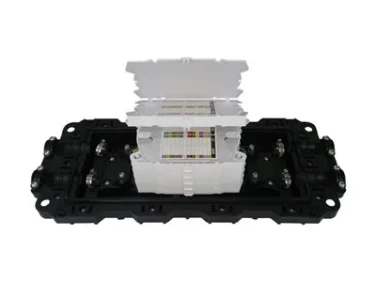

By accommodating and protecting 144 splicing connections, the N600H-0144-6 provides a high level of scalability in your network design. The enclosure supports up to four cable entry passthroughs to support a variety of cable runs. Each hinged fiber splice tray allows access to internal cabling without having to remove other trays, making on-going re-entry and re-use convenient.
