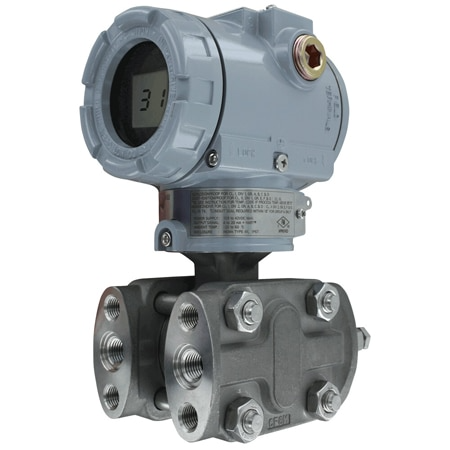

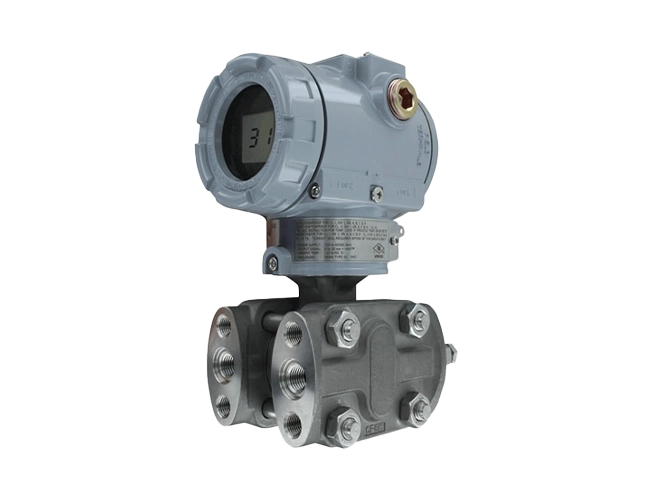

DWYER Smart differential pressure transmitter, range 0-30" w.c., with LCD display
003015-HW-DWYER-016
Overview
Series 3100D Explosion-proof Differential Pressure Transmitter HART® Communication, Push Button Configuration, Rangeability
| Brand | DWYER |
| Accuracy | ± 0.075 % |
| Accuracy Detail | ± 0.075% FS (@ 20°C) |
| Burst Pressure | 10,000 psi Maximum |
| Compliance | CE, FM |
| Damping Time | 0.25 to 60 s |
| Display Type | LCD |
| Electrical Connection | 1/2 in NPT female Conduit with Screw Terminal block |
| Electrical Output | 4 to 20 mA, HART |
| Enclosure Ratings | Hazardous Location Rated, IP66, NEMA Type 4X |
| Long Term Stability | ± 0.125% FSO/year |
| Loop Resistance | Operation: 0 to 1500 Ω, HART® Communication: 250 to 500 Ω |
| Materials, Wetted | 316L Stainless Steel, Fluoroelastomer |
| Media Compatibility | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam |
| Number of Digits | 5 |
| Operating Temperature, Max | 80 °C |
| Operating Temperature, Min | -30 °C |
| Output Detail | HART® Communication |
| Output Signal | Current, HART |
| Pressure Type | Differential |
| Pressure, Max | 30 inH₂O |
| Pressure, Min | 0 inH₂O |
| Process Connection Size | 1/4 in |
| Process Connection Type | NPT Female |
| Process Temperature, Max | 120 °C |
| Process Temperature, Min | -40 °C |
| Proof Pressure | Up to 2000 psi |
| Response Time | 0.12 s |
| Supply Power Type | DC |
| Supply Voltage | 11.9 to 45 Vdc |
| Thermal Effects | ± 0.125% span/32°C |
| Turndown Ratio | 100:1 |
| Weight | 3.9 kg |
| display-type | LCD |
Mercoid® Series 3100D Smart Pressure Transmitter is a microprocessor-based high performance transmitter, which has flexible pressure calibration, push button configuration, and programmable using HART® Communication. The Series 3100D is capable of being configured for differential pressure or level applications with the zero and span buttons. A field calibrator is not required for configuration. The transmitter software compensates for thermal effects, improving performance. EEPROM stores configuration settings and stores sensor correction coefficients in the event of shutdowns or power loss. The Series 3100D is FM or ATEX approved for use in hazardous (classified) locations. The 100:1 rangeability allows the smart transmitter to be configured to fit any application.
