DuraLabel Kodiak Max Arc Flash Kit
-
NG # 2272-HW-DUR-006
-
MF # DLKM-ARC
Manufactured by:
DuraLabel Kodiak Max Arc Flash Kit is a comprehensive solution for arc flash labeling. This industrial labeling kit includes all necessary supplies for creating NFPA 70E/NEC arc flash safety labels to ensure compliance with OSHA standards.
Specification
Specification Size
17.4"(W) x 19.5"(D) x 11.8"(H)
Weight
43.4 lbs (19.7 kg)
Print technology
Thermal Transfer
Resolution
300 DPI
Print Speed
2 inches per second
Print Width
4.0" to 10.0"
Maximum Print Length
100"
Indicators
Power, Printer Status, Supply Status
Connectivity
USB 2.0 (front 2x USB-A, back 2x USB-A, 1x USB-B), Ethernet, and Wi-Fi
Display
9" Capacitive Touchscreen
Memory
4 GB Flash, 2 GB SDRAM
Cutter
Automatic
Input Voltage
100-240 VAC
Software
LabelForge PRO (Arc Flash, Label Editor, GHS, NFPA, Pipe Marking modules) & PDF Viewer
Operation Temperature
50°F to 104°F (10°C to 40°C)
Operation Humidity
30-85%, non-condensing
Storage Temperature
-4°F to 140°F (-20°C to 60°C)
Storage Humidity
10-90%, non-condensing
Ribbon Supply Capacity
361'
Warranty
5 years
Environmental Compliance
WEEE, CE, FCC, IC
Description

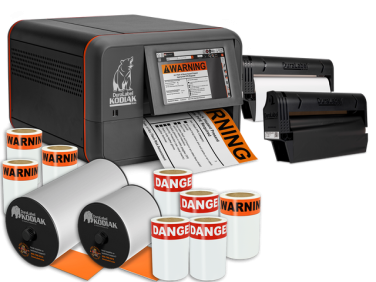

DuraLabel Kodiak Max Printer 4 rolls of 6"x9" Orange WARNING Outdoor Arc Flash, Health & Safety Labels - 60 labels/roll 4 rolls of 6"x9" Red DANGER Outdoor Arc Flash, Health & Safety Labels - 60 labels/roll 1 roll of 9"x50' Orange Stripe Arc Flash/OSHA Two-Color Vinyl Tape - 2.5" Stripe 1 roll of 4"x50' Orange Premium Vinyl Tape 2 cartridges of 8.6"x361' Black Premium Ribbon 2 cartridges of 8.6"x361' White Premium Ribbon
