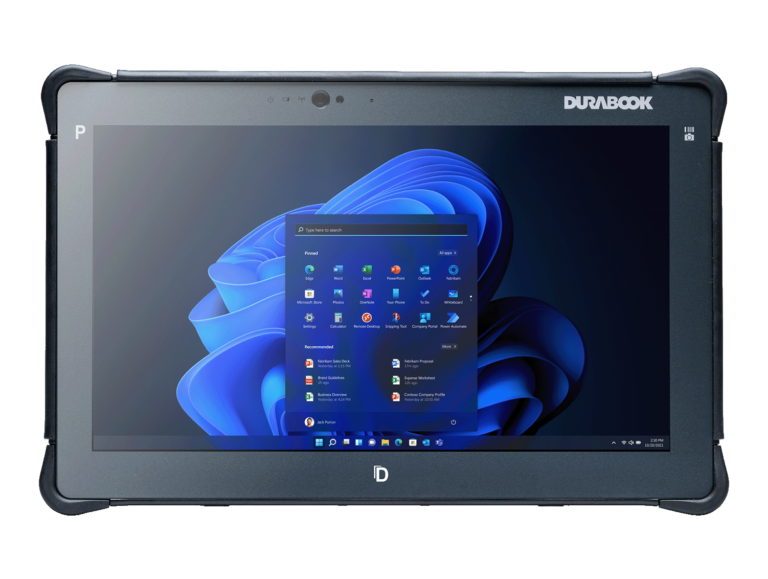

Durabook R8 Rugged Tablet
006357-HW-Durabook-057
Overview
Combining the mobility and flexibility of its pocketable form with a business-focused design, the R8 fully rugged tablet offers a unique combination of revolutionary computing power, rugged features and high portability to withstand the most challenging environments. Powered by Intel® 12th Generation processors, it is designed for professional operations close to the edge, where it is needed most. R8 features an 8-inch LCD display with Durabook’s proprietary DynaVue® technology for an exceptional viewing experience even in direct sunlight.
| Display | 8.0” LCD (1280 x 800) 800 nits DynaVue® sunlight readable display with capacitive multi-touch screen Optional with digitizer User selectable touch mode for Finger/Water, Glove or Stylus programmable function |
| Operating System | Windows® 11 Pro 64-bit |
| Processors | Intel® Core™ i7-1250U (12th Gen) Processor with vPro™ (12MB Cache, up to 4.7 GHz, 2P+8E cores) Intel® Core™ i5-1230U (12th Gen) Processor with vPro™ (12MB Cache, up to 4.4 GHz, 2P+8E cores) Intel® Pentium® Gold Processor 8500 (8MB Cache, up to 4.4 GHz, 1P+4E cores) |
| Memory | Onboard 8GB up to 16GB (LPDDR4x) |
| Storage | 128GB NVMe PCIe SSD Optional 256GB/512GB/1TB PCIe SSD |
| Graphics | Intel® UHD Graphics |
| Camera | Integrated 2.0 MP front-facing camera Optional 11.0 MP auto-focus rear camera with flash |
| Audio | Integrated microphone Intel® High Definition Audio Compliant Integrated speaker x 1 |
| I/O Ports | Thunderbolt 4 x 1 USB 3.2 Gen2 (type C) x 1 (support DP) Audio in/out (combo jack) x 1 microSD card (microSDXC) x 1 Docking connector (20-pin Pogo) x 1 Nano SIM card x 1 DC-In jack x 1 Optional USB 3.2 Gen1 (type A) x 12 Optional 10/100/1000 Ethernet (RJ45) x 12 Optional serial port (RS232) x 12 Optional 1D/2D barcode reader x 12 Optional RF antenna pass-through for GPS, WWAN and WLAN1 |
| Keyboard & Input | 4 buttons (1 user-definable key) |
| Expansion Slot | Optional magnetic stripe reader1,2 Optional smart card reader with LF/HF-RFID (NFC) or UHF-RFID (NFC) or RS232/RJ45/USB 3.2 Gen1 (type A)1,2 |
| Wireless & Communications | Intel® Wi-Fi 6E AX211 (802.11 ax) Bluetooth® V5.3 Optional dedicated GPS module3 Optional GPS and 4G LTE multi-carrier mobile broadband3 Optional RF antenna pass-through for GPS, WWAN and WLAN1 |
| Security | Intel® vPro™ Technology (per CPU options) TPM 2.0 NIST BIOS compliant Stealth mode Night vision mode Optional smart card reader1,2 Optional LF/HF-RFID (NFC) reader1,2 Optional UHF-RFID (NFC) reader1,2 |
| Power | AC adapter : 100-240V, 50Hz-60Hz, 65W Main battery Li-Ion, 7.6V, 3600mAh, 8.5 hours4 Optional long life battery Li-Ion 7.6V, 7200mAh, 17 hours4 Optional swappable battery: 5 minutes swap time5 |
| Dimension & Weight | 227 mm (L) x 150 mm (W) x 20.5 mm (H) 0.86 kg |
| Warranty | 3-year limited warranty standard |
Durabook’s proprietary DynaVue® technology for an exceptional viewing experience even in direct sunlight. Weighing in at just 0.86kg (1.9lbs), the Durabook R8 sports a Coolfinity™ fanless and yet versatile expansion design for ultimate functionality. Its IP66 rating, six-foot drop resistance, MIL-STD 810H and ANSI/UL C1D2 certifications make the R8 more rugged than other comparable devices on the market, making it the most reliable mobile device to support digital and remote operations for all kind of professional applications.
