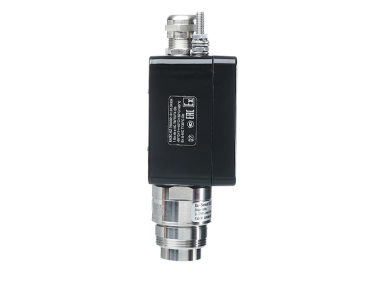

Dräger Polytron SE Ex
TF:
007004-HW-Dräger-004
Overview
A robust gas detection solution designed for continuous monitoring of flammable gases and vapours. It operates using the heat-of-reaction principle, where combustible gases oxidise on the sensing element and generate a measurable temperature change. Built for demanding conditions, it maintains reliable performance even in harsh industrial environments.
| Type | Sensing head |
|---|---|
| Measuring Principle | Catalytic Bead Sensor |
| Response time | |
| Cable entry | M20 x 1.5 |
| Display | No |
| Intrinsic Safety | No |
| Flameproof | yes |
| Increased Safety | Yes |
| SIL | (SIL 1) |
| 4-20 mA | No |
| Bus | No |
| HART® | No |
| Wireless | No |
Technical Data
| Power Supply | |
|---|---|
| Temperature (operation) | -50°C - 85°C |
| Humidity | 5 to 95 % r.h., non-condensing |
| Pressure (hPa) | 800 - 1100 |
| Dimensions (H Ă— W Ă— D) | 13.6x10.7x5.6 cm |
| Weight | 600 g |
| Housing Material | Glass fiber reinfrorced polyester (GFRP) or aluminum |
| Degree of protection (IP class) | IP66 |
Approvals
| ATEX | Yes |
|---|---|
| IECEx | Yes |
| UL | No |
| CSA | No |
| CE marking | Yes |
| GOST (EAC) | No |
| Performance approval | Yes |
| Shipping approval | Yes |
| FM | No |
This detector provides dependable, real-time flammable-gas monitoring using a proven catalytic heat-of-reaction method. Its rugged construction and stable sensing technology make it ideal for facilities such as petrochemical plants, refineries, and storage areas where tough environmental conditions and consistent safety monitoring are required.
