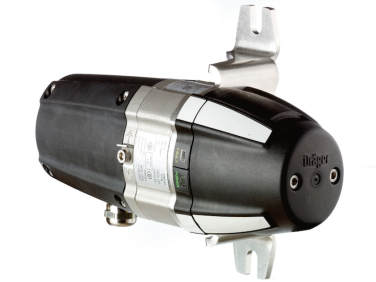

Dräger PIR 7200
TF:
007010-HW-Dräger-010
Overview
An explosion-proof point infrared gas detector designed for continuous carbon dioxide monitoring, featuring drift-free optical technology and a rugged construction for reliable performance in harsh industrial environments.
| Type | Transmitter |
|---|---|
| Measuring Principle | Infrared |
| Response time | < 1 second (fast response) |
| Cable entry | M25 or 3/4" NPT |
| Display | No |
| Intrinsic Safety | No |
| Flameproof | Yes |
| Increased Safety | Yes |
| SIL | SIL 2 (IEC 61508-1-3) |
| 4-20 mA | Yes |
| Bus | No |
| HART® | Yes |
Technical Data
| Power Supply | 13 to 30 VDC, 3-wire |
|---|---|
| Temperature (operation) | -40°C - 77°C |
| Humidity | 0 to 100% r.h. |
| Pressure (hPa) | 700 - 1300 |
| Dimensions (H Ă— W Ă— D) | 8.9x16x8.9 cm |
| Weight | 2.2 Kg |
| Housing Material | Stainless steel SS316 L |
| Degree of protection (IP class) | IP66/67 |
Approvals
| ATEX | Yes |
|---|---|
| IECEx | Yes |
| UL | Yes |
| CSA | Yes |
| CE marking | Yes |
| GOST (EAC) | No |
| Performance approval | No |
This infrared detector ensures accurate, long-term COâ‚‚ measurement through stable, drift-free optics that minimize calibration needs. Its explosion-proof housing delivers safe operation in hazardous areas, while the robust mechanical design resists extreme temperatures, vibration, and dust. Ideal for industries that require dependable, continuous gas monitoring with reduced maintenance effort.
