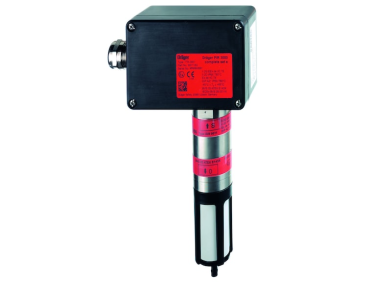

Dräger PIR 3000
TF:
007009-HW-Dräger-009
Overview
An explosion-proof point infrared gas detector designed for continuous monitoring of flammable gases and vapours, offering high reliability and durable construction for the harshest industrial environments.
| Type | Transmitter |
|---|---|
| Measuring Principle | Infrared |
| Response time | <= 30 seconds |
| Cable entry | M25 or 3/4" NPT |
| Display | No |
| Intrinsic Safety | No |
| Flameproof | Yes |
| Increased Safety | Yes |
| SIL | SIL 2 (IEC 61508-2) |
| 4-20 mA | Yes |
| Bus | No |
| HART® | No |
| Wireless | No |
Technical Data
| Power Supply | 10 to 30 VDC |
|---|---|
| Temperature (operation) | -40°C - 65°C |
| Humidity | 0 to 100% r.h. |
| Pressure (hPa) | 700 - 1300 |
| Dimensions (H Ă— W Ă— D) | 17x3.7x3.7 cm |
| Weight | 550 g |
| Housing Material | Stainless steel SS 316 |
| Degree of protection (IP class) | IP65/66/67 |
Approvals
| ATEX | Yes |
|---|---|
| IECEx | Yes |
| UL | Yes |
| CSA | Yes |
| CE marking | Yes |
| GOST (EAC) | Yes |
| Performance approval | No |
| Shipping approval | Yes |
| FM | No |
This infrared gas detector delivers stable, non-contact detection of flammable gases with rapid response and long-term performance. Its explosion-proof design ensures safe operation in hazardous areas, while its rugged build withstands extreme temperatures, vibration, and challenging field conditions—making it ideal for demanding industrial safety applications.
