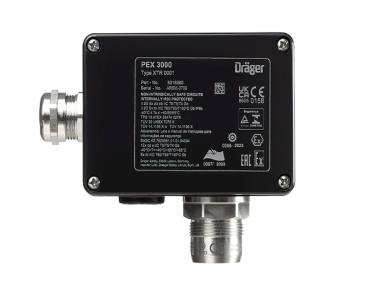

Dräger PEX 3000
TF:
007007-HW-Dräger-007
Overview
A robust transmitter designed for the continuous monitoring of flammable gases and vapours, featuring drift-free optical technology and a durable construction that ensures reliable performance even in the harshest industrial conditions.
| Flameproof | No |
|---|---|
| Increased Safety | Yes |
| SIL | SIL 1 |
| 4-20 mA | Yes |
| Bus | No |
| HART® | No |
| Wireless | No |
Technical Data
| Power Supply | 12 to 30 V DC |
|---|---|
| Temperature (operation) | -40°C - 65°C |
| Humidity | 5 to 95 % r.H. |
| Pressure (hPa) | 700 - 1300 |
| Dimensions (H Ă— W Ă— D) | 14.5x8x5.5 cm |
| Weight | 600 g |
| Housing Material | Glass fiber reinforced polyester (GFRP) |
| Degree of protection (IP class) | IP66 |
Approvals
| ATEX | Yes |
|---|---|
| IECEx | No |
| UL | No |
| CSA | No |
| CE marking | Yes |
| GOST (EAC) | No |
| Performance approval | Yes |
| Shipping approval | Yes |
A robust transmitter designed for the continuous monitoring of flammable gases and vapours, featuring drift-free optical technology and a durable construction that ensures reliable performance even in the harshest industrial conditions.
