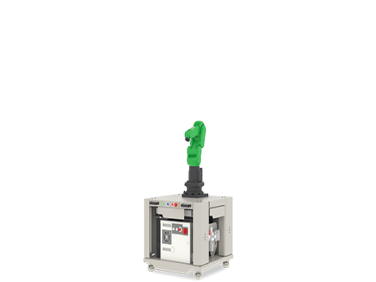

Astro-33 with FANUC Robot CR-4iA
TF:
006307-HW-DIY-007
Overview
This Astro-33 is the smallest collaborative cell of our product line. Its size covers smaller floor space than classic industrial robots, which makes it perfect for smaller plants that would like to automate their production lines.
| Lenght | 914 mm (36 in) |
|---|---|
| Width | 914 mm (36 in) |
| Height | 813 mm (32 in) |
| Weight | 307 kg (676 lbs) |
| Cell Payload | 500 kg (1102 lbs) |
| Robot Payload | 4 kg |
| Reach | 550 mm |
| Speed | 1000 mm/s |
Also, this entry-level cell is the least expensive of our cobots cells. This makes the Astro-33 the perfect product to start automating a factory and try a cobot for the first time.
Like every collaborative cell, the Astro-33 can safely work closely with human workers. This small cell is perfect for tasks with lighter payload like pick-and-place, material sorting, or any other repetitive task.
