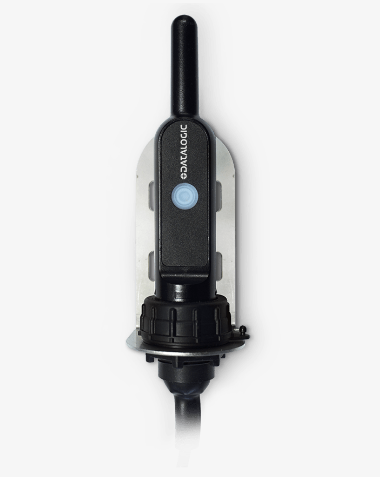

Datalogic SD9030 Dongle
TF:
005014-HW-DATALOGIC-014
Overview
This compact sized receiver allows communication between a PowerScan™ PM9X00 with any host equipped with a USB port. When paired with a PM9XXX reader, the SD9030 dongle acts as a base station by providing USB communication to the host and implementing all the features of the Datalogic’s proprietary STAR 2.0 radio system. This allows bidirectional communication and provides the ability to link more scanners to the same dongle.
| Interface | USB 2.0 (5 V DC ±10%, ≤ 210 mA) |
| Radio Frequencies | 433 MHz and 910 MHz options |
| Scanner Compatibility | PowerScan™ PM9XXX (firmware updates may required for PM9300/PM9100) |
| Radio Speeds | 19.2 / 36.8 / 115.2 / 500 kb/s |
| Mounting | Universal bracket, adhesive labels; forklift mount-friendly |
| Rugged Specs | IP65 rating; –20 °C to +60 °C; 90% non-condensing humidity |
| Physical Size | ~167 x 43 x 27.5 mm; 145 g (without mount) |
| Indicators | Multi-color LED + Find Me button (operational status feedback) |
| Configuration | Barcode programming, USB-COM, Aladdin™ software |
| Accessories | USB extension cable, bundled kits |
| Warranty | Typically 3-year bring-in |
