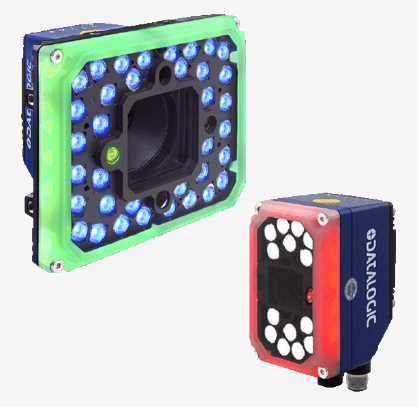

Datalogic Matrix 320 Barcode Scanner
TF:
005032-HW-DATALOGIC-032
Overview
The Datalogic Matrix 320 has outstanding reading performance on label and high resolution DPM with powerful Smart configurable lighting (in three colors) that is able to solve difficult traceability applications. This scanner promises increased productivity at the best price/performance ratio with its superior 2MP sensor.
| Feature | Specification Highlights |
|---|---|
| Sensor & Imaging | 2 MP global shutter (or optional 5 MP) • 60 fps |
| Optics | Liquid Lens (6/9/16 mm) • C-Mount support |
| Lighting | VHP (36 LED) • UHP (72 LED, 5 MP models) |
| Autofocus | Electronic remote focus (LQL) |
| Installation Aids | ToF distance sensing • Orientation sensor • 360° LEDs |
| Feedback | Grid/cross aiming • Green/Red spot |
| Connectivity | Gig-E, RJ-45, RS-232 |
| Software & Setup | X-Press HMI • DL.Code • Web UI/FTP • Device discovery |
| Ruggedness | IP65/IP67 • ≤50 °C operational |
| Barcode Types | 1D/2D, postal codes, DPM • Code quality standards |
| Accessories | Lenses, filters, mounts, lighting modules • PackTrack |
| Performance Model | Matrix 320 X: quad-core, double throughput |
| Service Packages | EaseOfCare available |
Matrix 320 provides the highest market application flexibility with a modular design, a reduced number of models complemented by a complete portfolio of lenses, lightings, filters, and accessories. Full industrial connectivity, a compact body, and rotating connectors allow the Matrix 320 to easily fit into every work environment.
