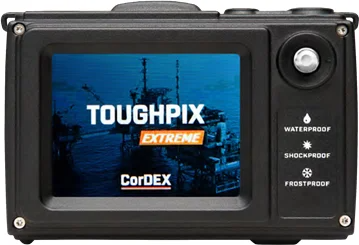

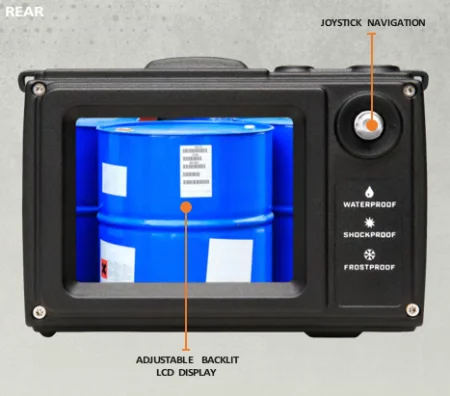

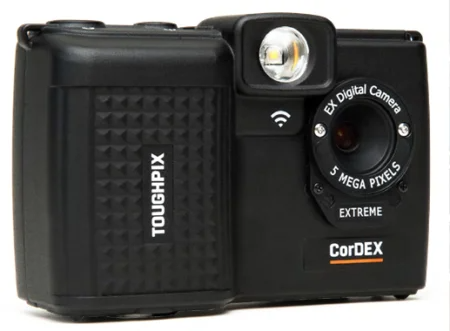

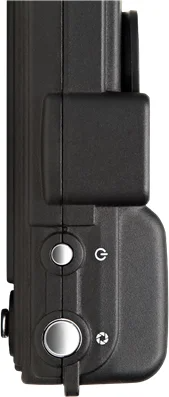

CorDEX ToughPIX EXTREME TP3EX Portable Camera
TF:
001501-HW-SEL-001
Overview
Intrinsically Safe Camera CorDEX ToughPIX EXTREME TP3EX protects your people and your facility by being both Intrinsically Safe and Intrinsically Secure.
| CERTIFICATIONS: | |
| ATEX Marking | II 2 G, ex ib op is IIC T4 Gb, Ta-10°C to +40°C |
| ATEX Certificate | ExVeritas 17 ATEX 0177 X |
| IECEx Marking | Ex ib io is IIC T4 Gb |
| IECEx Certificate | IECEX EXV 17.0013X |
| Ingress Protection | IP54 |
| IMAGING PERFORMANCE: | |
| Resolution | 5MP |
| Image type | JPEG |
| Flash | Ultrabright, Ex-supercapacitor charged LED |
| Focus | Automatic |
| Exposure | Automatic with 'close up' mode |
| Movie Capable | YES |
| Resolution | 1028x1024 |
| Frame rate | 5hz |
| GENERAL: | |
| Image download | Intrinsically Secure |
| Image Storage | 4GB SD Card |
| Body Material | Aluminum |
| Weight | 380g |
| Operating range | (-)10°C to +40°C |
| Storage | (-)20°C to +60°C |
| ELECTRICAL: | |
| Battery type | Removable, rechargeable (safe area) |
| Capacity | 2000mAh |
| Chemistry | Li-Ion |
Your mission-critical images are captured and stored onto a removable SD card for download in the safe area, Intrinsically Safe Camera CorDEX ToughPIX EXTREME TP3EX can also create a secure wifi hotspot for image transfer to a single nominated device.
