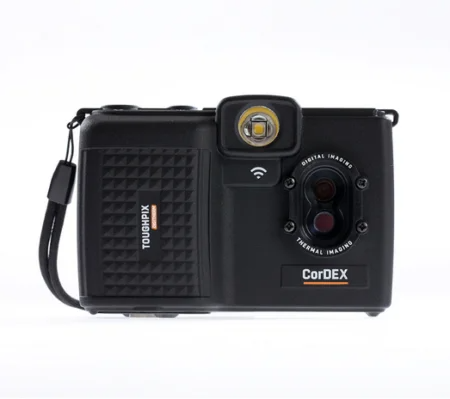

CorDEX ToughPix DigiTherm TP3REX Digital Camera
TF:
001502-HW-SEL-002
Overview
Introducing CorDEX TOUGHPIX DIGITHERM TP3rEx, a fully functional, compact, lightweight, and intrinsically safe digital image camera with a wide dynamic range.
| Certificate Information | |
| Standards | ATEX Zone 1 and 2 Ex ib IIC T4 Gb Ta = -10˚C to +40˚C Groups A, B, C, D, T4 t Ta = -10C to +40C |
| General Information | |
| Image Download | WIFI & removable memory card (safe area only) |
| Image Storage | 8GB |
| Standard Image Capture Resolution | 5 Megapixel |
| Screen Size | 2.8 inches |
| Detailed Information | |
| Lens & LCD material | Armoured Glass |
| Weight | 13.4oz |

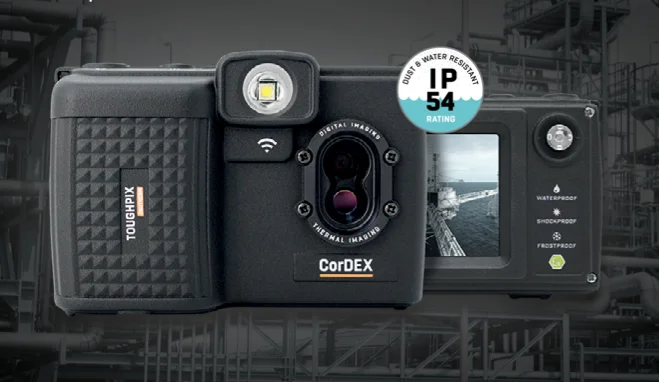

| IP | 54 |
| Body Material | Anodised aluminium with polymeric materials |
| Dimensions | Length 4.4in: Height: 2.9in Width: 1.7in |
| Electrical Information | |
| Battery Type | Removable & Rechargeable Ex Power Battery |
| Capacity | 1900mAh |
| Cell Type | Lithium Ion |
| Thermal Radiometric Capability | |
| Sensor | 80x60 Pixel Array |
| Imaging | Adaptive thermal blending for dual mode imaging |
| Low Range | 14°F to + 284°F with +/-28.4°F or +/-2% accuracy |
| High Range | 14°F to + 716°F with +/ 23°F or +/-5% accuracy |
In addition to having the same fundamental characteristics as the ATEX and IECEX certified, this current edition of TOUGHPIX DIGITHERM has the added benefit of being certified by MET to Class I, Division 2 standards for the North American market.
