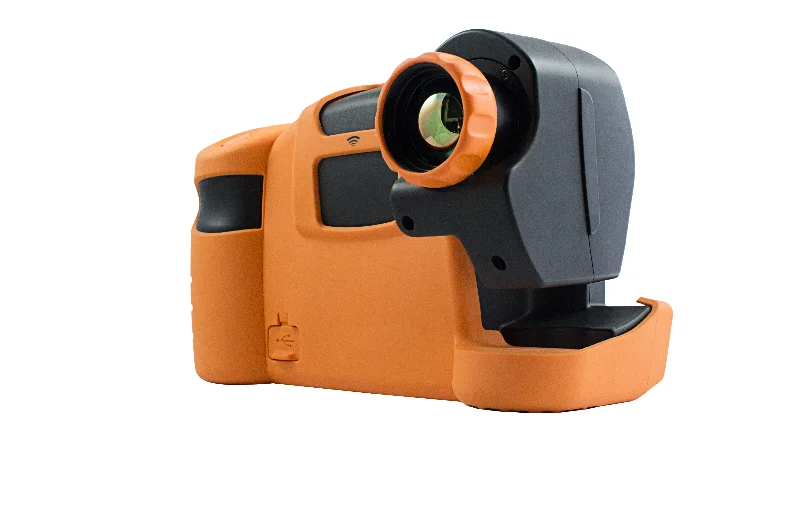

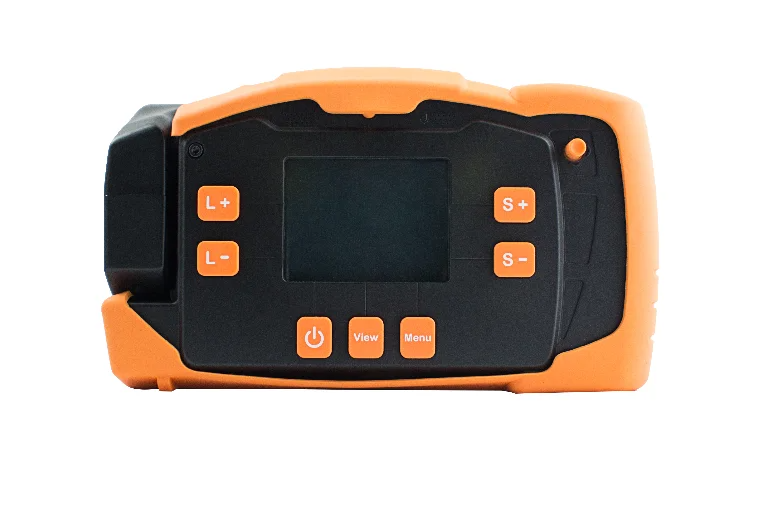

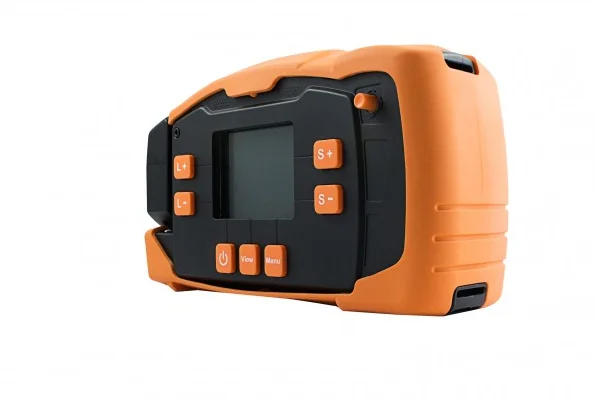

CorDEX TC7000 Camera
TF:
001504-HW-SEL-004
Overview
ATEX and IECEx Certified Intrinsically Safe Camera CorDEX TC7000. Passed CorDEX Tough TEST.
| Certificate Information | |
| ATEX / IECEx Certificate No | TRAC12ATEX0037X / IECEx TRC 12.0019X |
| ATEX / IECEx Certificate Types | • Ex ib IIC T4 Gb Tamb -10°C to +40°C (Vapor) |
| • Ex ib IIIC T200°C Db Tamb -10°C to +40°C (Dust) | |
| • Ex ib I Mb (Mining) | |
| Temperature Information | |
| Measurement Range | -4°F to 1112°F (-20°C to +600°C ) |
| Accuracy | ± 2°C or 2% of reading |
| Imaging | |
| Image Frequency | 9Hz |
| Detector | 320 x 240 uncooled microbolometer |
| Thermal Sensitivity/NETD | 50mK |
| Spectral Range | 8μm to 14μm |
| Field of View (FOV) | 25° x 20.5° |
| Spatial resolution (IFOV) | 1.38 mrad |
| Minimum focus distance | ≈ 4” (10cm) |
| Lens | F 1.2 |
| Image Capture | |
| File Storage | 8GB |
| File Formats | CDX (Radiometric) JPEG (Non-radiometric) |
| Voice Annotation | YES |
| RFID Tag Reader | • Operates with 13.54MHz passive tags |
| • Detection range up to 5cm (1.9in) | |
| • SupportsISO/IEC15693-2,ISO/IEC18000-3 tag formats | |
| General | |
| Operating Temperature | -4°F to 104°F (-20°C to +40°C) |
| Storage Temperature | -40°F to +158°F (-40°C to +70°C) |
| Display | 3.2” Backlit LCD |
| Software | CorDEX CONNECT (Included) |
| Batteries | Rechargeable Lithium-ion |
6 hours continuous run-time. CorDEX CONNECT enabled. Glove-friendly controls. 8GB file storage.
