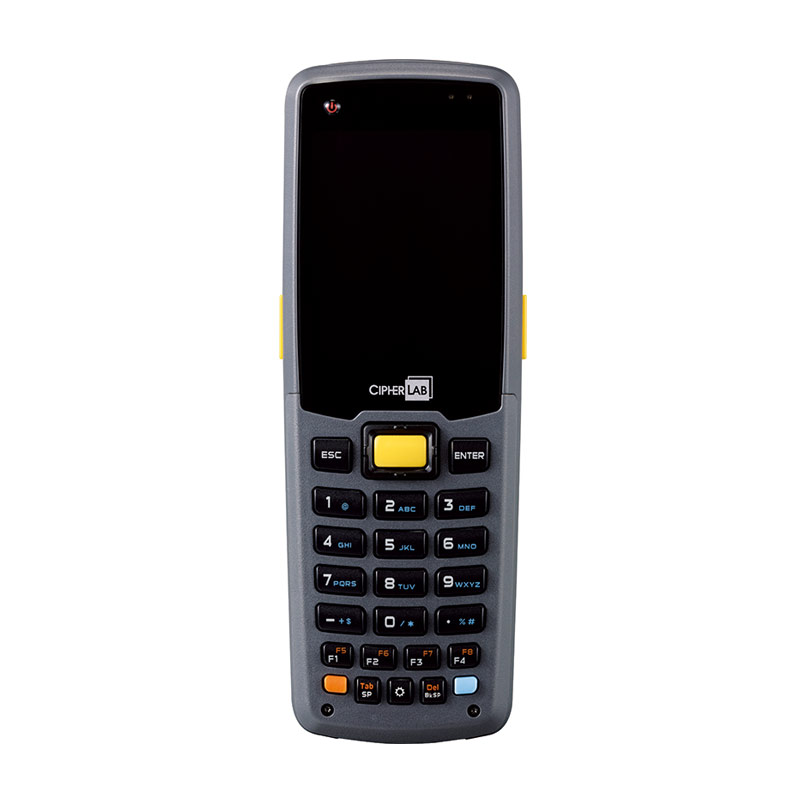

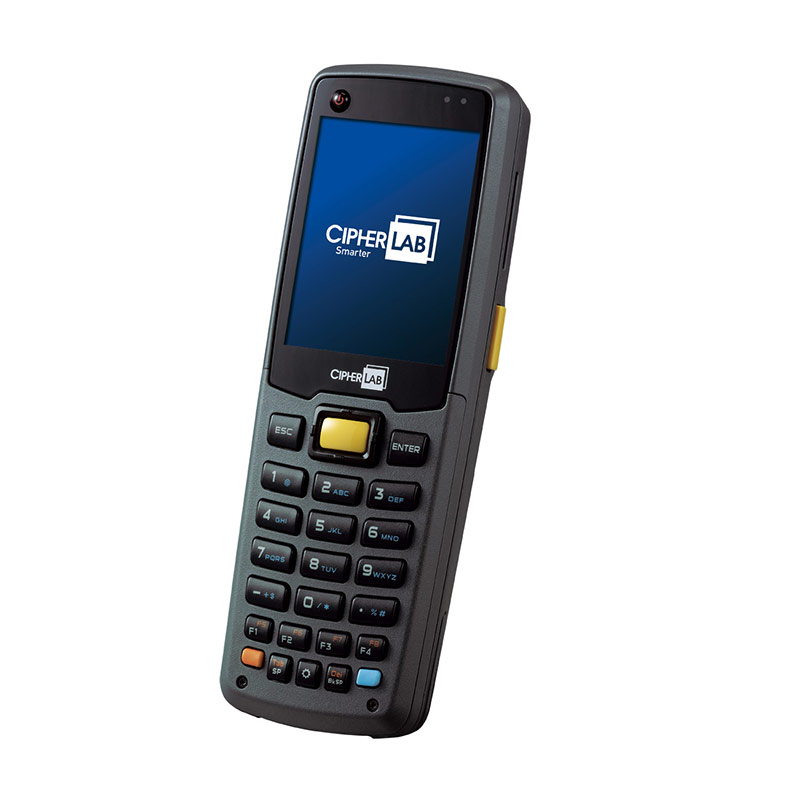

Cipherlab 8600 Series Industrial Mobile Computer
TF:
004907-HW-CIPERLAB-007
Overview
Well protected with IP65 standards and 1.8 m drop resistance, the 8600 series mobile computer is specifically designed with top durability and able to capture data from harsher environments.
| Item | 8600 |
|---|---|
| OS | CipherLab Operating System (cOS) |
| CPU | ARM Cortex-M3 |
| Memory | 8MB / 16MB SRAM |
| Expansion | micro SD slot with SDHC support |
| Operating power | Rechargeable 3.7V 1100mAh / 2200mAh Li-ion battery |
| Wireless communication | GPS: GPS JN3, Internal antenna (Optional) |
| Barcode scanning | Linear imager / Laser / 2D imager |
| RFID read / write | Frequency: 13.56MHz, Support tags: ISO 14443A, ISO 14443B, ISO 15693 |
| Display | 2.83” color LCD, 240 x 320 pixels, TFT with programmable LED backlight |
| Size | 170 x 60 x 30 mm |
| Weight | Approx. 240g |
| Impact resistance | Multiple 1.8m / 6ft. drops onto concrete, 5 drops on each side, 1,000 tumbles at 1m / 3ft, IP65 |
Versatile reader options including optional RFID reader allows for wider data collection. New software like Forge Application Generator, Remote Console and Text Browser provides simple development tool, remote management and more web-based application support. The 8600 series mobile computer also comes with swappable keypads and modular charging and communication system which provide various combinations to meet your requirements.
