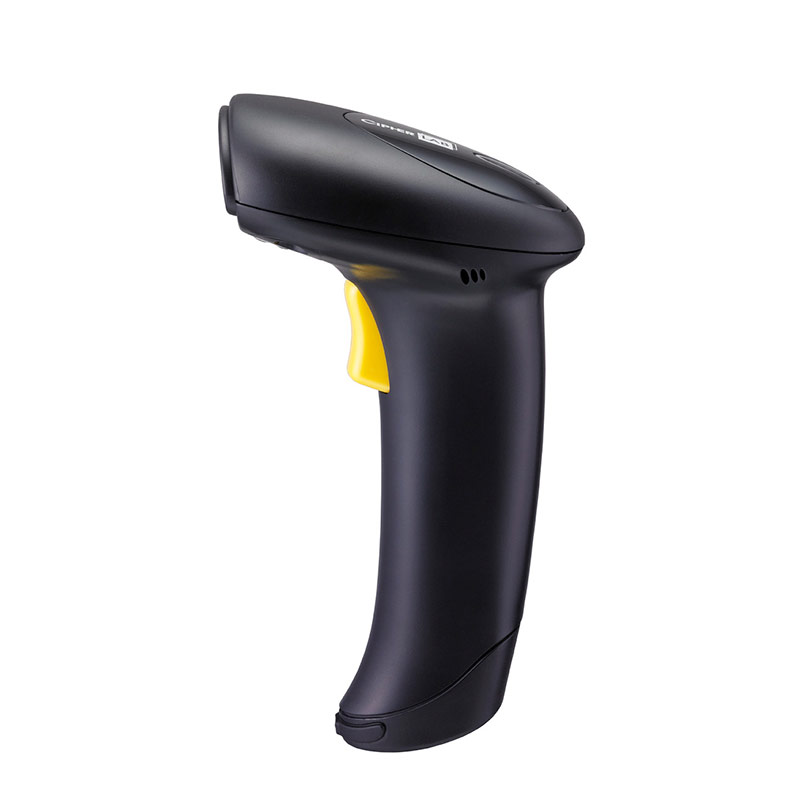

Cipherlab 1500 Series General Handheld Scanner
TF:
004910-HW-CIPERLAB-010
| Item | 1500P | 1560P | 1502 | 1562 |
|---|---|---|---|---|
| Data capture | Linear Imager | Laser | ||
| Connectivity | Corded | Bluetooth® Class 2 (2.4 GHz) Version 4.0+EDR | Corded | Bluetooth® Class 2 (2.4 GHz) Version 2.1+EDR |
| Optical sensor | 2500 pixels | Laser | ||
| Light source | Red LED 625 nm | Red LED 618-626 nm | Visible laser diode at 650 ± 15 nm | |
| Resolution | 3 mil | 4 mil | ||
| Depth of field | Code 39 3 mil: 6.9 to 10.7 cm / 2.7 to 4.2 in Code 39 5 mil: 6 to 17 cm / 2.4 to 6.7 in. UPCA 13 mil: 4 to 40 cm / 1.6 to 15.7 in. Long barcode 8.2 cm, 8 mil: 10 to 20 cm / 3.9 to 7.9 in. | Code 39 3 mil: 6.9 to 10.7 cm / 2.7 to 4.2 in Code 39 5 mil: 6 to 17 cm / 2.4 to 6.7 in. UPCA 13 mil: 4 to 40 cm / 1.6 to 15.7 in. | Code 39 4 mil: 1 to 4 cm / 0.4 to 1.6 in. Code 39 5 mil: 1 to 12 cm / 0.4 to 4.7 in.. UPCA 13 mil: 1.5 to 51.5 cm / 0.6 to 20.3 in. | |
| Scanning angle | Pitch ± 70° Skew ± 70° | Pitch ± 65° Skew ± 50° | ||
| PCS | 25% | 45% | ||
| Scan rate | 520 scans/ second | 100 scans/ second | ||
| Hands-free scanning | Auto-sense and continuous modes | Continuous mode | ||
| Barcodes supported | Codabar, Code 39, Code 93, Code 128,GS1 DataBar (RSS), Industrial 2 of 5, Interleave 2 of 5, ISBT-128, Italian and French Pharmacodes,Matrix 2 of 5, MSI, Plessey, Telepen, UPC / EAN / GS1-128, and more | |||
| Color | Black | |||
| Size | 15.3 x 6.1 x 9.3 cm / 6.0 x 2.4 x 3.7 in. | |||
| Weight | 149 g / 5.2 oz | 173 g / 6.1 oz | 149 g / 5.2 oz | 177 g / 6.2 oz |
| Impact resistance | 1.5 m (4.9 ft) multiple drops onto concrete | 1.2 m (3.9 ft) multiple drops onto concrete | ||
Bringing retail productivity and performance up to speed, the 1500 series of scanners offers powerful reliability with efficiency. Ideal for a wide range of applications from retail to healthcare and post offices, the 1500 scanner is not only advanced, but its ergonomic design also provides extreme durability – day in, day out.
