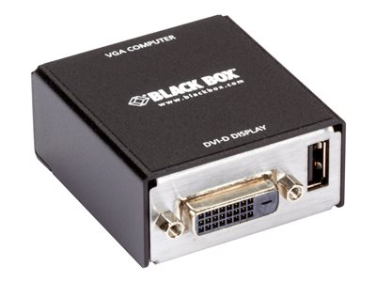

Black Box VGA to DVI-D Video Converter - USB Powered - video converter - TAA Compliant
-
NG # 2337-HW-BLACK-011
-
MF # KVGA-DVID
Manufactured by:
Specification
Approvals – CE; FCC Part 15; RoHS; WEEE
Compatibility – All computers with VGA outputs

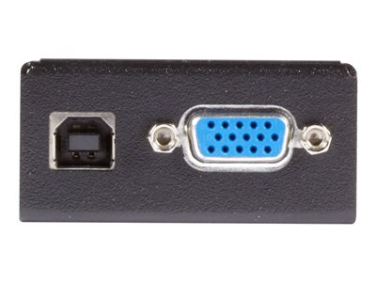

Connectors – (1) VGA DB15 F; (1) DVI-D F; (1) USB Type A F; (1) USB Type B F
Environmental –
Operating Temperature: 0 to 40°C (32 to 104°F);
Storage Temperature: -25 to +60°C (-13 to +140°F)
Indicators – Power
Input (VGA) – Resolutions to 1920 x 1200 at 60 Hz with pixel frequencies up to 165 MHz
Output (DVI-D) – DVI 1.0; Resolutions to 1920 x 1200 at 60 Hz with pixel frequencies up to 165 MHz
Operating System – All Windows®, MAC, Sun, Linux®/Unix®
Power – USB port of host device; Input: 5 VDC, 500 mA (consumes 300 mA/1.5 W nominal)
Dimensions – 2.54H x 5.6W x 6.98D cm, (1"H x 2.2"W x 2.75"D)
Weight – 0.1 kg (0.3 lbs.)
TAA compliant — YES
Description
Supports USB keyboards, mice, and USB peripherals.
Four computers share up to four different USB peripherals (2 HID, 2 USB 2.0).
True USB 2.0 emulation technology.
Front-panel push buttons and hotkey functions for easy computer selection.
The VGA to DVI-D Converter enables you to convert and adjust analog video for output on a single-link DVI-D display.
Mix and match
This converter is ideal for applications with a mix of old and new equipment, such as older PC CPUs with just analog video output and newer digital displays. It supports VGA resolutions up to 1920 x 1200 @ 60 HZ.
Plug-n-play
Even better, this plug-n-play converter automatically calibrates for horizontal and vertical position on the DVI screen. You can also manually adjust the positioning.
EDID management
The converter includes EDID management, which is critical in VGA to DVI-D conversion. EDID management ensures that the correct settings are passed through.
USB powered
The converter is USB powered and requires no separate power adapter. Instead it draws less than 300 mA from a spare USB port on the computer. A USB pass-through port on the converter enables a low-powered USB device to be connected so the total number of USB ports remain available for other uses.
Flash upgradeable
The converter is flash upgradeable enabling custom EDID adjustments for non-standard operations. The upgrades are achieved via the USB port.
Adjust the picture
A Virtual Control Panel (VCP) app enables you to adjust the brightness, tone, and sharpness of the picture. You can also adjust the vertical and horizontal video alignment.
Convert analog VGA signals to digital for display on a DVI-D screen. The VGA to DVI-D Converter enables you to convert and adjust analog video for output on a single-link DVI-D display. Mix and match This converter is ideal for applications with a mix of old and new equipment such as older PC CPUs with just analog video output and newer digital displays. It supports VGA resolutions up to 1920 x 1200 at 60 HZ. Plug-n-play Even better this plug-n-play converter automatically calibrates for horizontal and vertical position on the DVI screen. You can also manually adjust the positioning. EDID management The converter includes EDID management which is critical in VGA to DVI-D conversion. EDID management ensures that the correct settings are passed through. USB powered The converter is USB powered and requires no separate power adapter. Instead it draws less than 300 mA from a spare USB port on the computer. A USB pass-through port on the converter enables a low-powered USB device to be connected so the total number of USB ports remains available for other uses. Flash upgradeable The converter is flash upgradeable enabling custom EDID adjustments for non-standard operations. The upgrades are achieved via the USB port. Adjust the picture A Virtual Control Panel (VCP) app enables you to adjust the brightness tone and sharpness of the picture. You can also adjust the vertical and horizontal video alignment.
