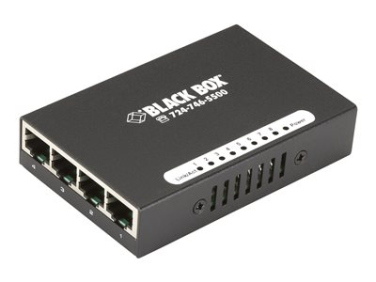

Black Box USB-Powered - switch - 8 ports
-
NG # 2327-HW-BLACK-001
-
MF # LBS008A
Manufactured by:
Specification
General Approvals CE, FCC CE Approval Yes Filtering/Forwarding Rate 10 Mbps: 14,880 pps; 100 Mbps: 148,800 pps MAC Addresses LBS005A - 2K
LBS008A - 1KPower From computer's USB port via power cable (included) or 115-VAC, 60-Hz external power supply (included); 4W Standards IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-T, IEEE802.3x Flow Control Switching Method Store-and-forward Item Specifications Connectors (8) RJ45 Country of Origin Taiwan Dimensions 0.8-in. H x 2.4-in. W x 3.1-in. D (2 x 6.2 x 7.9-cm) Indicators LEDs: Per Unit: (1) Power; Per Port: (1) LINK/ACT Weight 0.4-lb. (0.182-kg) Physical Specifications Operating temperature 0-55°C
Description
This compact portable Fast Ethernet switch enables easy network expansion and can be powered from a USB port. Autosensing 10-/100-Mbps ports. Autonegotiating half-/full-duplex. Auto-MDI/MDI-X function on all ports so no need for cross-pinned cables. Non-blocking store-and-forward switching method. Easy-to-see LED indicators enable you to view network status. Easy plug-and-play operation. Compact so you can tuck it neatly in the back of your PC.
