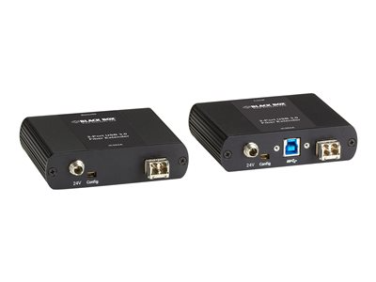

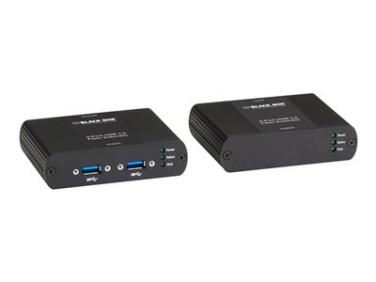

Black Box USB 3.0 Ultimate Fiber Extender - USB extender

  • NG # 2336-HW-BLACK-010

  • MF # IC502A-R2

Manufactured by:

This seller generally responds in under 48 hours

Specification

General

Device Type

USB extender

Form Factor

External

Networking

Connectivity Technology

Wired

Data Transfer Rate

5 Gbps

Max Transfer Distance

328 ft

Status Indicators

Power, link OK, host

Compliant Standards

USB 1.1, USB 2.0, USB 3.0

Expansion / Connectivity

Interfaces

2 x USB 3.0 - Type A

Miscellaneous

Cables Included

1 x SuperSpeed USB cable

Compliant Standards

Plug and Play, RoHS

Power

Power Device

External power adapter

Voltage Required

AC 120/230 V (50/60 Hz)

Software / System Requirements

OS Required

Linux, Apple MacOS X, Microsoft Windows

Dimensions & Weight

Width

3.9 in

Depth

3 in

Height

1 in

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Description

Extend a SuperSpeed USB 3.0 signal beyond the 16 ft (5 m) limitation up to 328 ft (100 m) over Multimode fiber to two peripherals. Extend a SuperSpeed USB 3.0 signal beyond the 16 ft (5 m) limitation up to 328 ft (100 m) over Multimode fiber to two peripherals. Compatible with the USB 3.0 or"SuperSpeed USB" standard the extender boasts speeds up to 5 Gbps about ten times that of USB 2.0. This way you can extend your USB bus connections to newer USB 3.0 devices that use higher bandwidths and require bidirectional asynchronous full-duplex data transfer. Plus it supplies more power than USB 2.0 to the remote devices. With the higher data-transfer rate and power the extender is ideal for connecting industrial USB 3.0 machine vision cameras particularly those with high power sensors. It's also great for post-production video editing and broadcast applications with USB 3.0 peripherals and external USB CD/DVD drives in different rooms.
