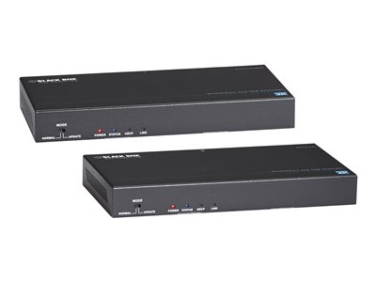

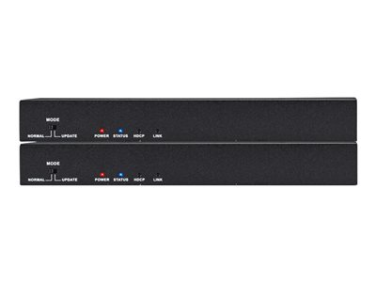

Black Box Receiver + Transmitter - video/audio/USB/serial extender - USB, serial, DisplayPort
TF:
2365-HW-BLACK-039
MF:
UVX-DP-TP-100M
| Compliance | |
| cUL | 1 |
| FCC | |
| UL | 1 |
| General | |
| Data Rate | 10.2 Gbps maximum |
| Distance | CAT6A/CAT7: Up to 328 feet (100 m) at 3840 x 2160 @30 Hz, 4:2:0, or 1080p @60 Hz output resolution; CAT5e/CAT6: Up to 224 feet (70 m) at 3840 x 2160 @30 Hz; Up to 328 feet (100 m) at 1080p @30 Hz resolution |
| Operating Temperature | 32 to 113° F (0 to 45° C); |
| Resolution | Input: Up to 3840 x 2160 @ 30 Hz (UHS); Output: UHD30: 3840 x 2160 @30 Hz; FHD: 1920 x 1080 @60 Hz; HD: 1280 x 720 @60 Hz; WUXGA: 1920 x 1200 @60 Hz; WXGA: 1280 x 800 @60 Hz |
| Storage Temperature | -4 to 158° F (-20 to 70° C) |
| Item Specifications | |

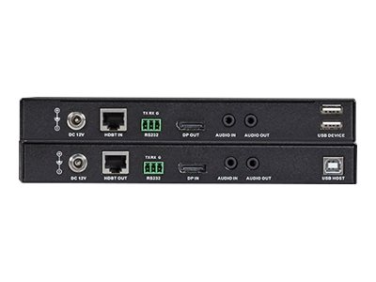

| Connectors | Transmitter: (1) 12-VDC Barrel; (1) CATx OUT; (1) 3-pin Phoenix Connector; (1) DisplayPort IN; (1) Audio IN; (1) Audio OUT; (1) USB Type-B; Receiver: (1) 12-VDC Barrel; (1) CATx IN; (1) 3-pin Phoenix Connector; (1) DisplayPort OUT; (1) Audio IN |
| Country of Origin | China |
| Dimensions - Receiver | 0.99-in. H x 7.91-in. W x 3.95-in. D (2.51 x 20.09 x 10.03-cm) |
| Dimensions - Transmitter | 0.99-in. H x 7.91-in. W x 3.95-in. D (2.51 x 20.09 x 10.03-cm) |
| Weight - Receiver | 1.1 lb. (0.5 kg) |
| Weight - Transmitter | 1.1 lb. (0.5 kg) |
Extend 4K DisplayPort audio and video, USB, serial, and power up to 100m over a single CATx cable. This Black Box DisplayPort& USB 2.0 Extender is designed for highly demanding use cases and is capable of supporting DisplayPort resolutions up to Ultra HD 4K at distances of up to 100m. The Transmitter and Receiver units are electronically isolated from one another removing the risk of damage via ground loop with USB 2.0 devices one can extend a keyboard mouse and and other peripheral signals.
