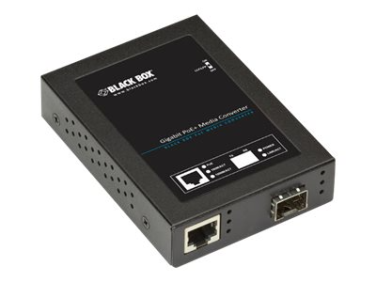

Black Box PoE+ PSE Media Converter - fiber media converter - 10Mb LAN, 100Mb LAN, GigE
2349-HW-BLACK-023
LPS535A-SFP
| General | |
| Approvals | FCC Class A, CE |
| Controls | (1) DIP switch: ON: LLP/LFP enable; OFF: LLF/LFP disable |
| Environmental | Temperature: Operating: 32 to 113° F (0 to 45° C); Storage: -4 to 185° F (-20 to +85° C); |
| Humidity | 10 to 90% relative, non-condensing |

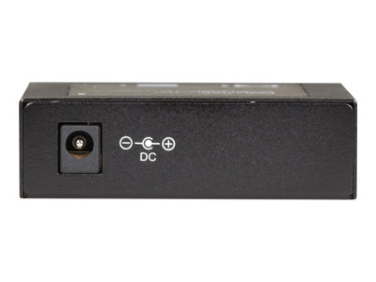

| Power | External power adapter included with US power cord (IEC320); Input: 100-240 VAC, 50-60 Hz, 0.8 A max.; Output: 48 VDC, 0.8 A; Consumption: 33 Watts maximum; PoE+ output: 802.3at, up to 30 W |
| Standards | IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX; IEEE 802.3ab 1000BASE-T: IEEE 802.3z 1000BASE-SX/LX: IEEE 802.3at PoE+ |
| Item Specifications | |

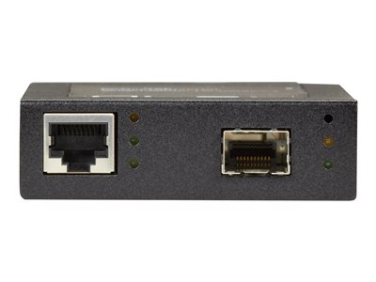

| Connectors | (1) RJ45; (1) SFP |
| Country of Origin | Taiwan |
| Dimensions | 0.9-in. H x 2.9-in. W x 4-in. D (2.2 x 7.4 x 10.2-cm) |
| Indicators | Power LED: ON when DC power is connected; SFP Link/Act LED: ON when there is activity on the SFP link; PSE: ON when a Powered Device (PD) is connected; 100M/ACT: ON when port is running at 100M speed and activity; 1000M/ACT: OFF when port is |
| Weight | 0.53-lb. (0.241-kg) |
Connect with fiber and provide power to remote PoE+ devices. Transparently connect fiber to copper to power PoE+ devices at the edge of your network. Use the Converter to connect PoE+ devices such as PTZ (pan tilt zoom) cameras 802.11n access points VoIP phones and more that require up to 30 watts of power. The Converter acts as a Power Sourcing Equipment (PSE) to push data and power over copper to the remote Powered Devices (PDs). The Media Converter features one autosensing 10/100/1000-BASE-T UTP port plus an SFP port that can be used for multimode and single-mode 1000BASE-X fiber connections. It is powered via an external AC adapter which delivers 4757 input power voltage. The Converter features advanced functions such as auto-negotiation Auto-MDIX Link Lost Forwarding and Link Fault Pass-Through for easy system management and troubleshooting. LEDs indicate Converter activity. This product is covered by one of more of the following United States Patent Nos. 7457250 8902760 and/or 9019838.
