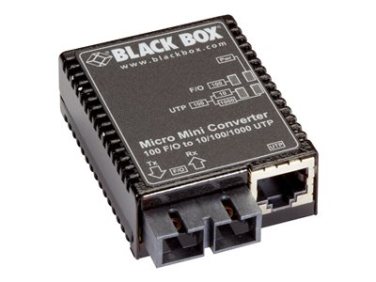

Black Box Micro Mini Media Converter - fiber media converter - 10Mb LAN, 100Mb LAN, GigE - TAA Compliant

  • NG # 2346-HW-BLACK-020

  • MF # LMC402A

Manufactured by:

This seller generally responds in under 48 hours

Specification

General
CE ApprovalYes
Humidity5 to 95%, noncondensing
Operating temperature+32 to +122° F (0 to +50° C);
Power100-120 VAC, 50-60 Hz, 0.02A @ 120 V external power supply or from a PC's USB port, 0.5 A @ 5 VDC
Storage temperature-40 to +176° F (-40 to +80° C);
Item Specifications

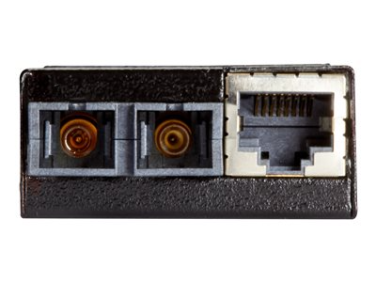

Connectors(1) RJ45; (1) USB Type-B; (1) SC
Dimensions0.84-in. H x 1.75-in. W x 2.25-in. D (2.1 x 4.4 x 5.7-cm)
WeightWithout power adapter: 2.5 oz. (70.8-g);
With USB cable: 3.8 oz. (107.7-g);
With AC power adapter (U.S.) and USB: 5.5-oz. (155.9-g)
Country of OriginUnited States

Description

Bring fiber to the desktop and other tight spaces. The Micro Mini Media Converter is ideal for bringing fiber to the desktop and for mobile applications where light weight compact size and low power requirements are critical. Weighing only 2.5 ounces and about the length of a house key this ultra-compact media converter is portable yet powerful. For extra versatility it can be USB-powered making it easy to provide fiber connectivity to locations where AC or DC power is unavailable for instance field-deployed fiber-to-the-laptop. For easy portability this tiny converter conveniently slips into a pocket or laptop carrying case. The converter is plug-and-play with an RJ-45 port that autonegotiates for speed duplex mode and crossover functions for PCs with 10BASE-T 100BASE-TX and 1000BASE-T Ethernet. On the fiber side the converter has an SC connector for connection to multimode fiber. Because it can be powered through a computer's USB 1.0 or 2.0 port the Micro Mini Media Converter is ideal for connections to fiber in areas where a spare power outlet may not be available. When plugged into a computer's USB port the media converter shuts down automatically when you turn off the computer which saves energy.
