Black Box LES1604A-R-R2 - console server
TF:
2329-HW-BLACK-003
MF:
LES1604A-R-R2
| General | |
| Console Management | Built-in web terminal, SSH direct to consoles, optional console keystroke logging, alert on cable disconnects, inline power control, multiple concurrent sessions |
| Humidity | 5 to 90% |
| Memory | 256 MB DDR3 SDRAM; 32 MB Embedded NOR Flash |
| Power | 110–240 VAC to 12 VDC external power adapter |
| Power Consumption | Less than 11.5 W |
| Security and Authentication | SSH; FIPS-140-2 compliant Open SSL Module; Strong ciphers—AES encryption; Cisco-compatible IPsec; AAA—TACACS+, RADIUS, Active Directory/OpenLDAP, Kerberos, with local fallback; Two factor authentication via remote AAA; Configurable stateful firewall; OpenVPN |
| Serial Ports | Cisco straight 50 to 230,400 bps |
| Item Specifications | |

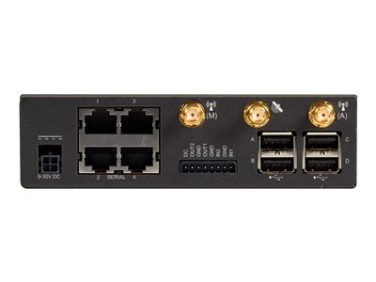

| Connectors | (4) RJ45 RS-232 Cisco straight pinout Console Ports; (2) 10/100/1000-Mbps Ethernet RJ45; Cisco straight 50 to 230,400 bps; (4) USB 2.0 Console Ports |
| Country of Origin | United States |
| Dimensions | 5.1-in. H x 4.8-in. W x 1.4-in. D (13 x 12 x 3.5-cm) |
| Weight | 1.3-lb. (0.59-kg) |

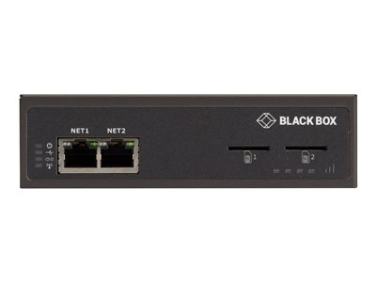

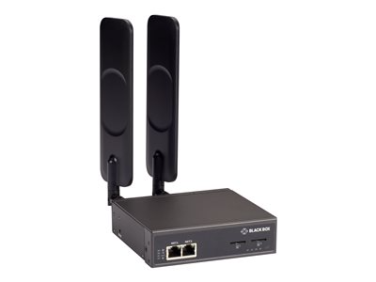

Tight budgets and sparse IT staffing make managing remote mission-critical IT, network, and power devices while meeting enterprise uptime requirements a challenge for IT managers. The solution is the LES1604A Console Server with an embedded 4G cellular modem and Cisco pinout. This highly reliable console server simplifies out-of-band management of your network, server, and power infrastructure in data centers and remote sites.
