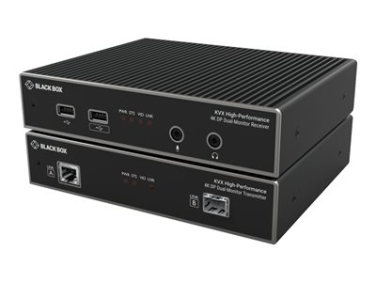

Black Box KVXHP-200 - KVM / audio / serial / USB extender - RS-232, USB 2.0, 10 GigE, DisplayPort, 5 GigE
TF:
2362-HW-BLACK-036
MF:
KVXHP-200
| General | |
| CE | Compliant |
| Distance | CAT5e cable: Up to 164 ft. (50 m); CAT6 cable: Up to 328 ft. (100 m); MM Fiber cable: Up to 984 ft. (300 m); SM Fiber cable: Up to 2.48 mi. (4 km) |
| Indicators | (4) Status LEDs (tri-color) |
| MTBF | RX: 516,000 Hours; TX: 533,000 Hours |
| Operating Humidity | 0 to 80%, noncondensing |
| Operating System | OS independent |
| Operating Temperature | 32 to 104° F (0 to 40° C) |
| Power | External 12-VDC, 1.5-Amps |
| Power Consumption | 18 Watts |
| Power Input | 100-240 VAC, 50/60 Hz |
| Power Output | 12 -VDC, 1.5 Amps |
| Resolution | 4096 x 2160 at 60 Hz |
| Resolutions Supported | 4096 x 2160 at 60 Hz |
| RoHS | Compliant |
| Storage Temperature | +14 to +122° F (-10 to +50° C) |
| Weight | RX: 2.96 lbs (1.34 kg);TX: 3 lbs (1.36 kg) |
| Item Specifications | |
| Connectors | TX Input Connectors: (2) DisplayPort RX Local Out Connectors: (2) DisplayPort |
| Country of Origin | United Kingdom |
| Dimensions - Receiver | 1.54-in. H x 7.32-in. W x 5.83-in. D (3.9 x 18.6 x 14.8-cm) |
| Dimensions - Transmitter | 1.54-in. H x 7.32-in. W x 5.83-in. D (3.9 x 18.6 x 14.8-cm) |
| Weight - Receiver | 2.73 lb. (1.24 kg) |
| Weight - Transmitter | 2.84 lb. (1.29 kg) |
The KVX HP Series Extenders are high-performance KVMA (keyboard, video, mouse, audio) extenders. Ultra-high-definition (UHD) 4K60 video, USB 2.0, and audio are transmitted on a single CATx or fiber cable. Developed for enterprise organizations and high-pressure control rooms, it combines the simplicity of true plug-and-play and high-performance 4K KVM extension. In a point-to-point configuration, the single-head models enable you to locally use a DisplayPort monitor, USB keyboard/mouse/ other devices, speaker and microphone to operate a remote computer, server, or other IT device. The dual-head models enable you to use two DisplayPort monitors. The quad-head models support four DisplayPort monitors. Operation is plug-and-play.
