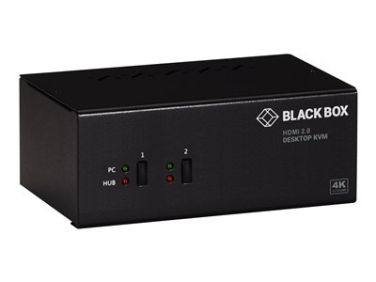

Black Box KV6222H - KVM / audio switch - 2 ports - TAA Compliant

  • NG # 2330-HW-BLACK-004

  • MF # KV6222H

Manufactured by:

This seller generally responds in under 48 hours

Specification

General
Keyboard and Mouse EmulationYes (TTU)
MTBF138,390 hours
ApprovalsFCC, CE

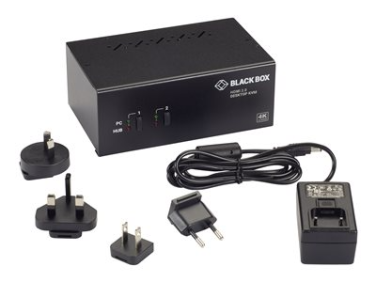

Power12 VDC, 3A
Resolution (Maximum)3840 x 2180 @ 60 Hz
Item Specifications

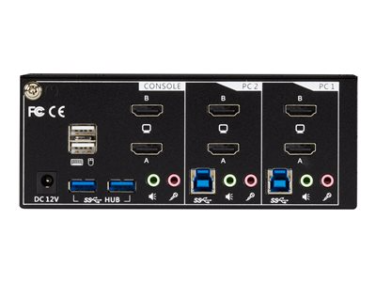

ConnectorsNumber of Ports - (2)
Number of Consoles - (1)
PC Keyboard/ Mouse Connectors - (2) USB Type-B (Female)
PC Video Connectors - (4) HDMI (Female)
PC Audio/Mic - (4) 3.5-mm Audio/mic Jack (Female)
Console Keyboard Connector - (1) USB Type-A (Female)
Console Mouse Connector - (1) USB Type-A (Female)
Console Monitor Connector - (2) HDMI (Female)
USB Hub Ports - (2) USB 3.1 Type-A (Female)
PC Selection - Pushbuttons/Hotkeys
Beeper - Yes
PC Port LEDs - 2 (Green)
Hub Port LEDs - 2 (Red)
Country of OriginTaiwan
Dimensions2.6-in. H x 3.9-in. W x 6.4-in. D (6.6 x 10.0 x 16.3-cm)
Weight1.6-lb. (0.73-kg)

Description

Access two 4K dual-monitor HDMI computers and two shared USB 3.0 peripherals from a single workstation Dual 4K Monitor Support Share two 4K monitors between two HDMI 2.0 enabled computers using only one keyboard and mouse saving valuable desk space and increasing productivity. Ultra HD 4K60 Resolution HDMI 2.0 Technology delivers crystal-clear 4K at 60Hz Ultra HD resolution driving two large external 4K (HDMI enabled) monitors. Advanced Keyboards and Mice Support for advanced keyboards and mice. Emulation technology allows complete versatility in dealing with the advanced functional requirements of today's keyboards and mice. From gaming mice/keyboards to advanced business mice/keyboards users will appreciate what this technology can do for them. Peripheral Sharing Share all your USB 3.0 Gen 1 (5Gbps) devices with ease with the separate built-in 2-port USB 3.0 Gen 1 (5Gbps). This allows the sharing of USB peripherals between each connected computer. Automatically switch connected USB devices to the selected computer. Total Multimedia Control Individual audio (mic/speaker) channels let you share independent audio from each of the connected computers allowing complete multimedia control between the different computers.
