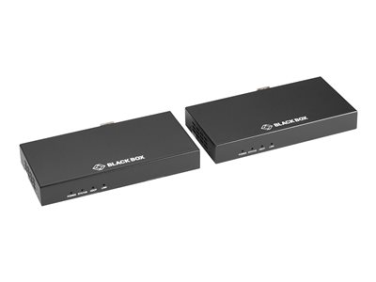

Black Box HDMI 2.0 Extender over Fiber - transmitter and receiver - video/audio/infrared/serial extender - RS-232, HDMI, infrared, CATx
-
NG # 2335-HW-BLACK-009
-
MF # AVX-HDMI2-FO-HDB
Manufactured by:
Specification

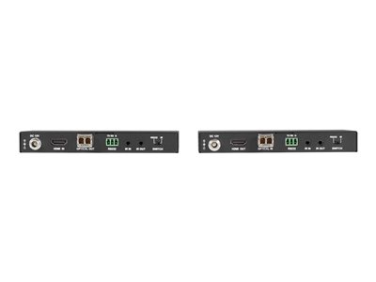

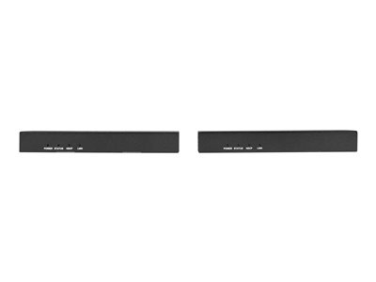

Compliance UL 2 General CE Approval Yes Distance (Maximum) Up to 300 meters (1000 ft) over Multimode OM3 Fiber Item Specifications Connectors (1) 2.1mm Barrel Connector for Power; (1) SFP+ Cage; (1) HDMI (Female); (1) 3-pin Phoenix for RS-232 Serial Extension; (2) 3.5mm IR Extension Port Country of Origin China Dimensions 0.79-in. H x 5.91-in. W x 2.93-in. D (20 x 150 x 74.4-mm) Indicators (1) Power LED, (1) Status LED, (1) HDCP LED, (1) Link LED Weight 0.66-lb. (0.3-kg) Video Input Transmitter: (1) HDMI female
Receiver:(1) optical input with LC connector
Description
Distribute UHD video, audio, RS232 or IR together up to 1000-ft (300-m) over fiber optic cable. Send higher-quality video and audio signals further with this HDMI 2.0 Extender. This extender kit distributes UHD video audio RS232 or IR up to 1000 feet (300 meters) over fiber optic cable. The bi-directional RS-232 or IR ports to control AV devices are easy to choose by the slide switch on the rear panels. Control sources and displays from either the transmitter or receiver end using either RS232 or IR signals. The extender supports duplex fiber up to 1000 feet (300 meters). Extend signals over duplex fiber up to 1000 feet (300 meters) while maintaining Higher resolutions Higher frame rates Multiple full HD streams in the same pipe 219 aspect ratio.
