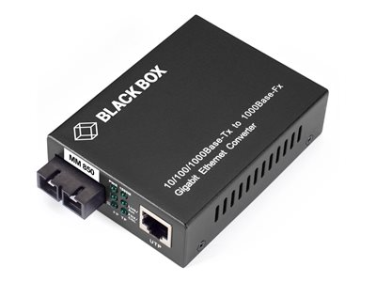

Black Box - fiber media converter - 1GbE
-
NG # 2358-HW-BLACK-032
-
MF # LGC211A-R2
Manufactured by:
Specification
Approvals — CE, RoHS, FCC Class B
Connectors —
LGC210A-R2: (1) RJ-45 connector, (1)SFP-slot

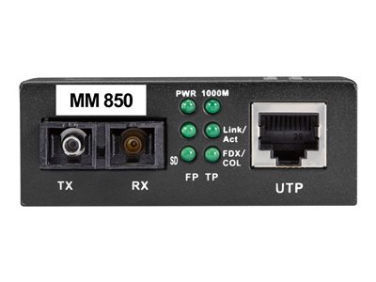

LGC211A-R2: (1) RJ45 connector, (1) Multimode duplex SC connector
LGC212A-R2: (1) RJ45 connector, (1) Singlemode duplex SC connector
Frame Size —
LGC211A-R2/LGC212A-R2: up to 9016 bytes
LGC210A-R2: up to 2916 bytes
Fibre type —
LGC211A-R2: Multi-mode: 50/125, 62.5/125 or 100/140 um,
LGC212A-R2: Single mode: 8.3/125, 8.7/125, 9/125 or 10/125 um
LGC210A-R2: depending on SFP transceiver
Standards — IEEE 802.3, IEEE 802.3U, 10/100BASE-TX, 100BASE-FX, IEEE 802.3x flow control for full-duplex mode, 802.3ab
1000BASE-T, 802.3z 1000BASE-X
Power —external power adapter, 100-240VAC input, 5VDC 1A 5W output with AC plug clips for US, EU , UK, AUS.
Size — 2,54 x 9,4x 6,9 cm (1"H x 3.7"D x 2.7"W)
Weight — 0,32 kg
Operating Temperature —0 to 50° C
Description
Convert 10/100/1000BASE-TX to 1000BASE-SX. 10/100/1000BASE-TX to 1000BASE-SX Meet the connectivity needs of your deployment. This media converter converts 10/100/1000BASE-TX to 1000BASE-SX. Includes broadcast storm control flow control and CRC error checking. Auto-negotiation Completely compatible with IEEE802.3/802.3u auto-negotiation function. Complies with Standards The media converter meets EN60950 UL62368 and EN62368 standards.
