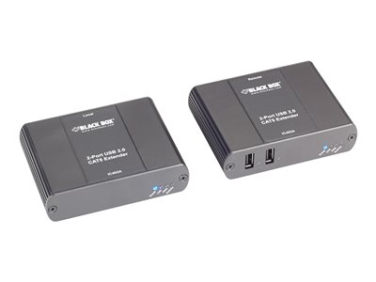

Black Box 2-Port CATx USB 2.0 Extender - USB extender - USB 2.0
-
NG # 2347-HW-BLACK-021
-
MF # IC402A-R2
Manufactured by:
Specification
General Connectivity 30 USB devices Environmental Operating temperature range: 32 to 122° F (0 to 50° C);
Operating humidity: 20 to 80%, noncondensing;
Storage humidity: 10 to 90%, noncondensingPower Local Unit: 24 VDC @ 1 amp;
Available to Remote Unit: Up to 1-Amp per USB Port, 1.5-Amps Total SharedRange 330 feet (100 meters) over CAT5e (or better) cable RoHS2 Yes Standards FCC (Class B), IC (Class B), CE (Class B); ESD Rating: EMC EN-61000-4-2:2001 4kV Contact, 8kV Air Item Specifications Connectors Local Unit: (1) USB Type-B; (1) RJ45;
Remote Unit: (2) USB Type-A; (1) RJ45Country of Origin China Dimensions - Receiver 1-in. H x 3.4-in. W x 3.0-in. D (26 x 87 x 75-mm) Dimensions - Transmitter 1-in. H x 3.4-in. W x 3.0-in. D (26 x 87 x 75-mm) Weight 2.2-lb. (1-kg)
Description
Extends USB 2.0 up to 100 meters over CATx UTP cable. Get USB connectivity anywhere. Combine the 2-Port CATx USB Extender with Remote or Local Power Simplified installation eliminates the need for AC power close to units. Delivers power to hubs over CAT5 cable. Combine with hubs to connect up to 30 devices. Remote units provide 1A to USB port. The USB Ultimate Extender works with all USB device types control interrupt bulk and isochronous at up to 480 Mbps. It's ideal for a wide variety of USB devices from printers scanners hard drives audio devices touch screens and Web cams. Supports all major operating systems including Windows Mac OS and Linux. It's truly plug-and-play ready to operate right out of the box. No driver installation required. Use it for any or all of the following applications Industrial control KVM extension Digital signage Remote desktop USB connections Security Web camera access control Medical device connectivity USB Device Sharing printing scanning storage.
