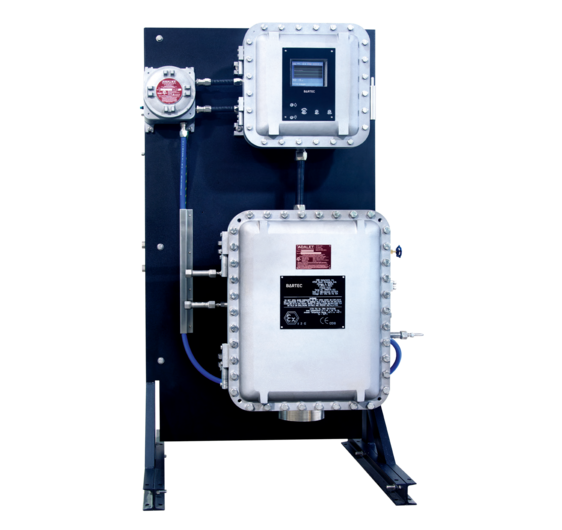

Pour Point Analyzer
TF:
003939-HW-WIN-O39
Overview
To remain competitive, today’s refiners must employ all optimization and product control techniques available.
| Technology | Differential pressure sensing system |
|---|---|
| Method | Compliant with ASTM D7346 Correlates with ASTM D97 |
| Measuring cycle | Typical is less than 20 minutes |
| Analog outputs | Pour Point/No Flow Point, cell temperature, pressure signal |
| Digital outputs | Pour point alarm, analyzer fault, come read (programmable) |
| Digital inputs | customer alarm, remote standby, stream switch, validation (dry contact) |
| Display | 7" color graphics |
| Weight | approximately 340 kg (750 lbs) |
| Dimensions | Approximately 940 x 1803 x 762 mm (37 x 71 x 30 inches) |
| MODBUS interface | TCP/IP or Serial/RTU MODBUS output available |
The use of online physical property analyzers is one of the key features to reach those objectives because they measure important quality properties in the process directly. The no flow point (correlating to pour point) is the temperature where a product (as it is cooled) stops flowing.
