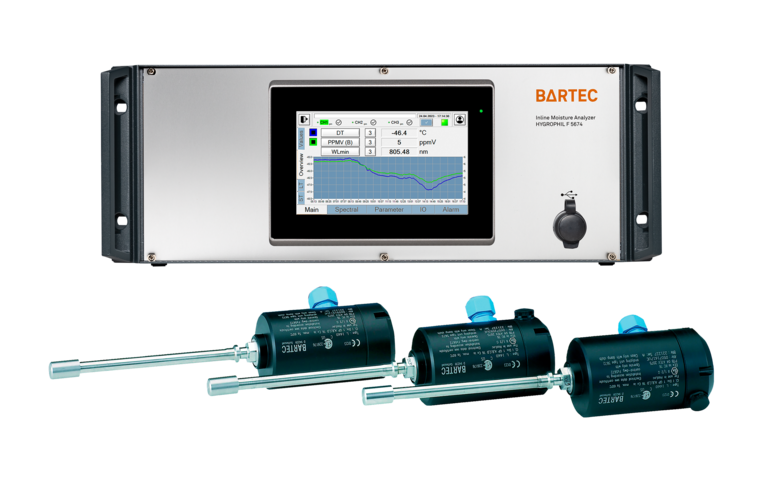

Bartec HYGROPHIL F 5674 Process Trace Moisture Analyzer
TF:
003927-HW-WIN-O27
| Measuring Technology | Fabry-Pérot-Interferometer |
|---|---|
| Measurement Channels | 1 (Single Channel) 1, 2 or 3 (Multi Channel) |
| Moisture Sensor | Calibrated Range: Dew point temperature -80 °C to 20 °C (-112 °F to 68 °F) Accuracy: +/- 1 K Customized calibration / validation on request Temperature Range: -30 °C to 60 °C Pressure Range: 0 to 20 MPa (0 to 2900 psi) Protection Type: IP65 (in built-in state) |
| Interfaces | 6x Analog Outputs (0/4…20 mA) 6x Relays (potential-free changeover contacts) Modbus RTU (RS485) Modbus TCP/IP Ethernet for Remote Access |
| HMI | Windows with 7" touch display 800 x 480 pixels |
| Ambient conditions | Evaluation Unit: AC: 5 °C to 50 °C (41 °F to 122 °F) DC: 5 °C to 45 °C (41 °F to 113 °F) Moisture Sensor: -30 °C to 60 °C (-22 °F to 140 °F) |
| Explosion Protection | ATEX IECEx cCSAus others on request |
| Process Integration Sensor | direct Union-T Gas-/Liquid Separator Sensor Retraction Armature Standard Sample Conditioning System Customized Sample Conditioning System |
| Ready for Hydrogen | Hydrogen content in Natural Gas ≤ 10 Mol %: suitable without limitation Hydrogen content in Natural Gas ≤ 20 Mol %: suitable without limitation Operation in pure Hydrogen: suitable without limitation |
HYGROPHIL F 5674 is a high-quality, fibre-optic hygrometer for measuring the moisture or trace humidity at low dew-point temperatures in gases and liquids. HYGROPHIL F 5674 works in multi-channel operation with a temperature compensated fibre-optic sensor developed especially for measuring the moisture content in gas mixtures and liquids.
